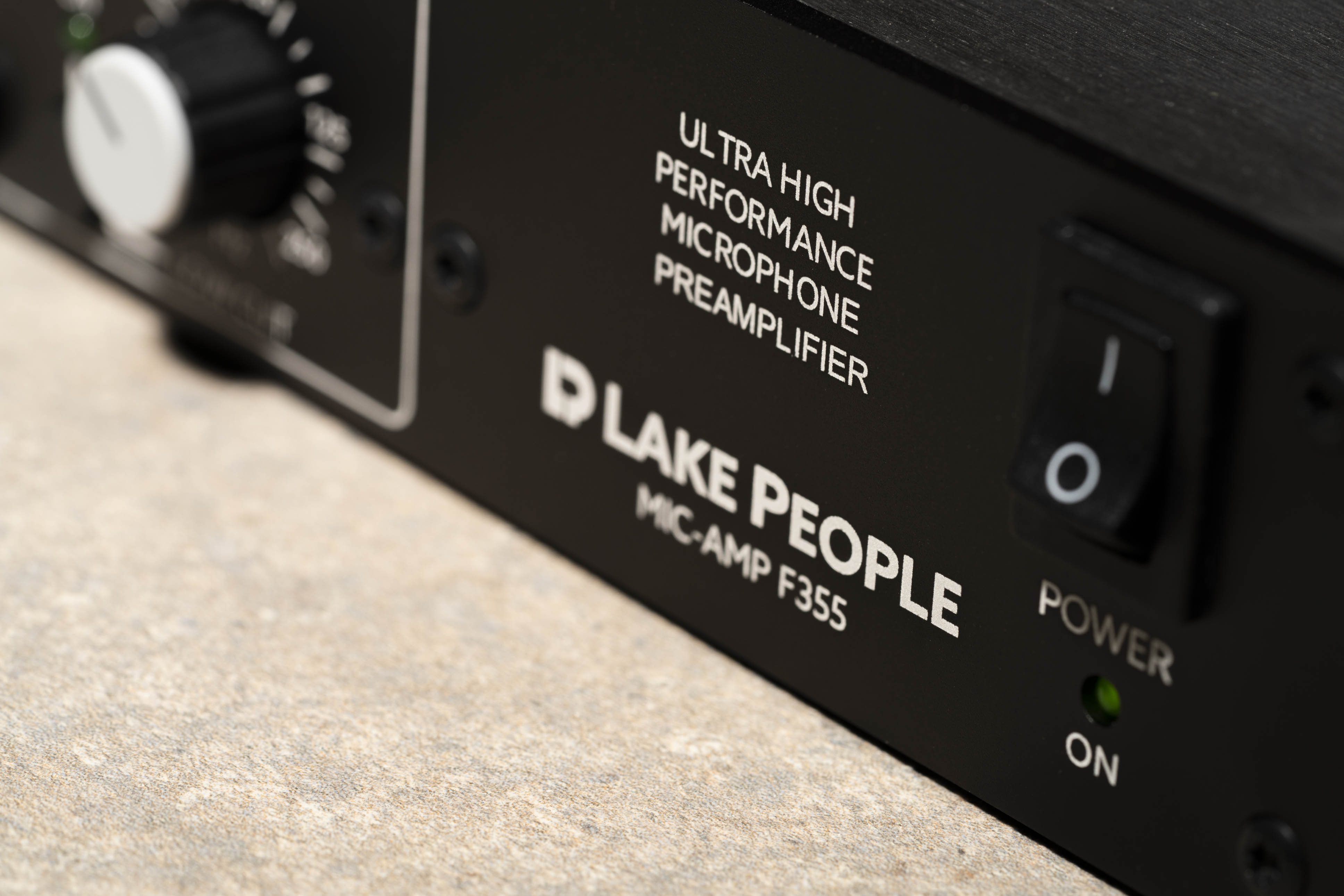

Lake People Mic-Amp F355

orderable

Item number: 1006257
EAN: 4262404460194

1,799.90EUR *

incl. VAT plus shipping costs

2-channel highest quality microphone preamplifier, 19" more

Close menu

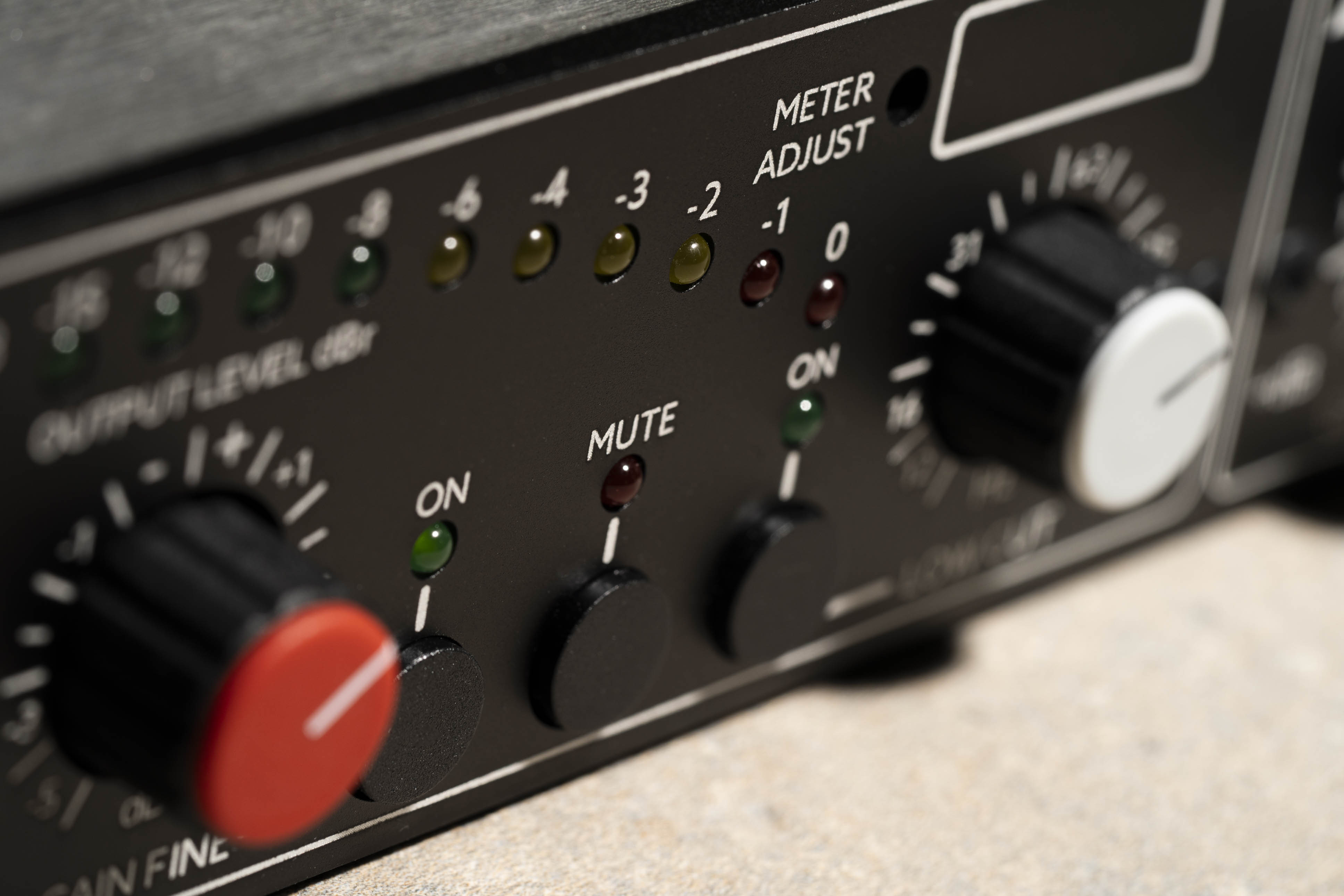

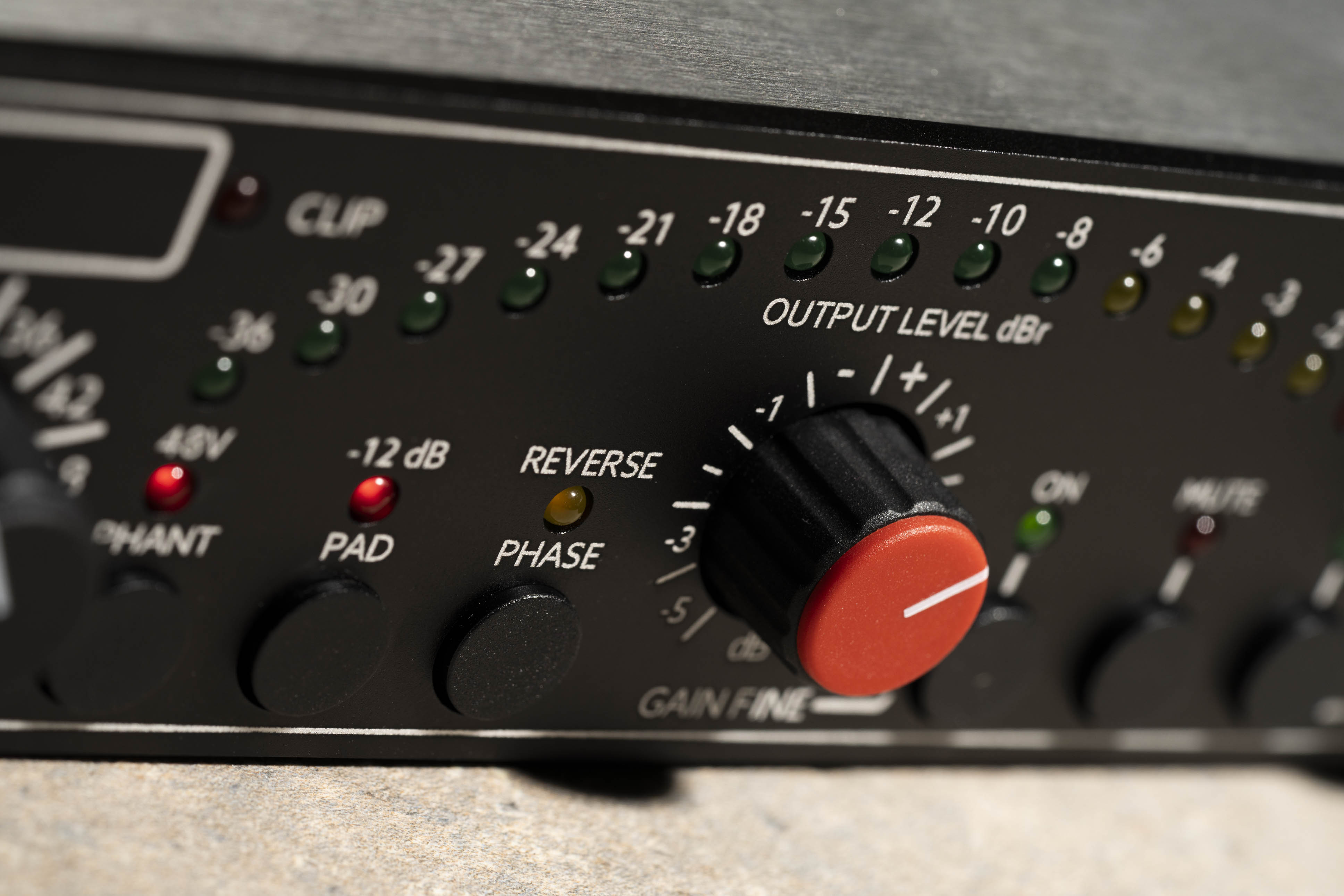

16-step fast level meter, 0 ... -36 dBr calibratable on the front panel
Deactivatable lo-cut, 12 dB/oct., with variable insert 12...250 Hz
Deactivatable gain fine adjustment with center detent potentiometer +/- 5 dB

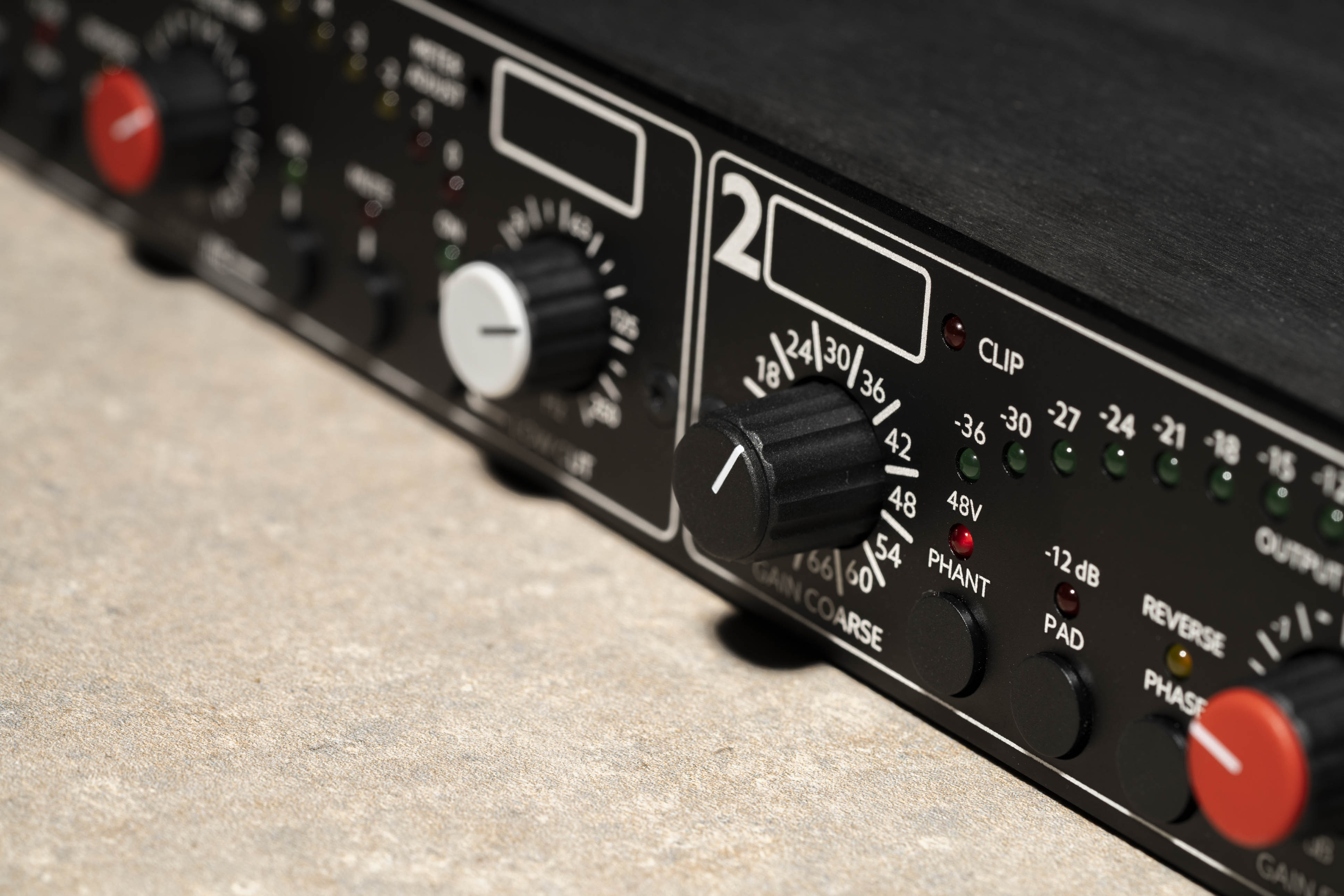

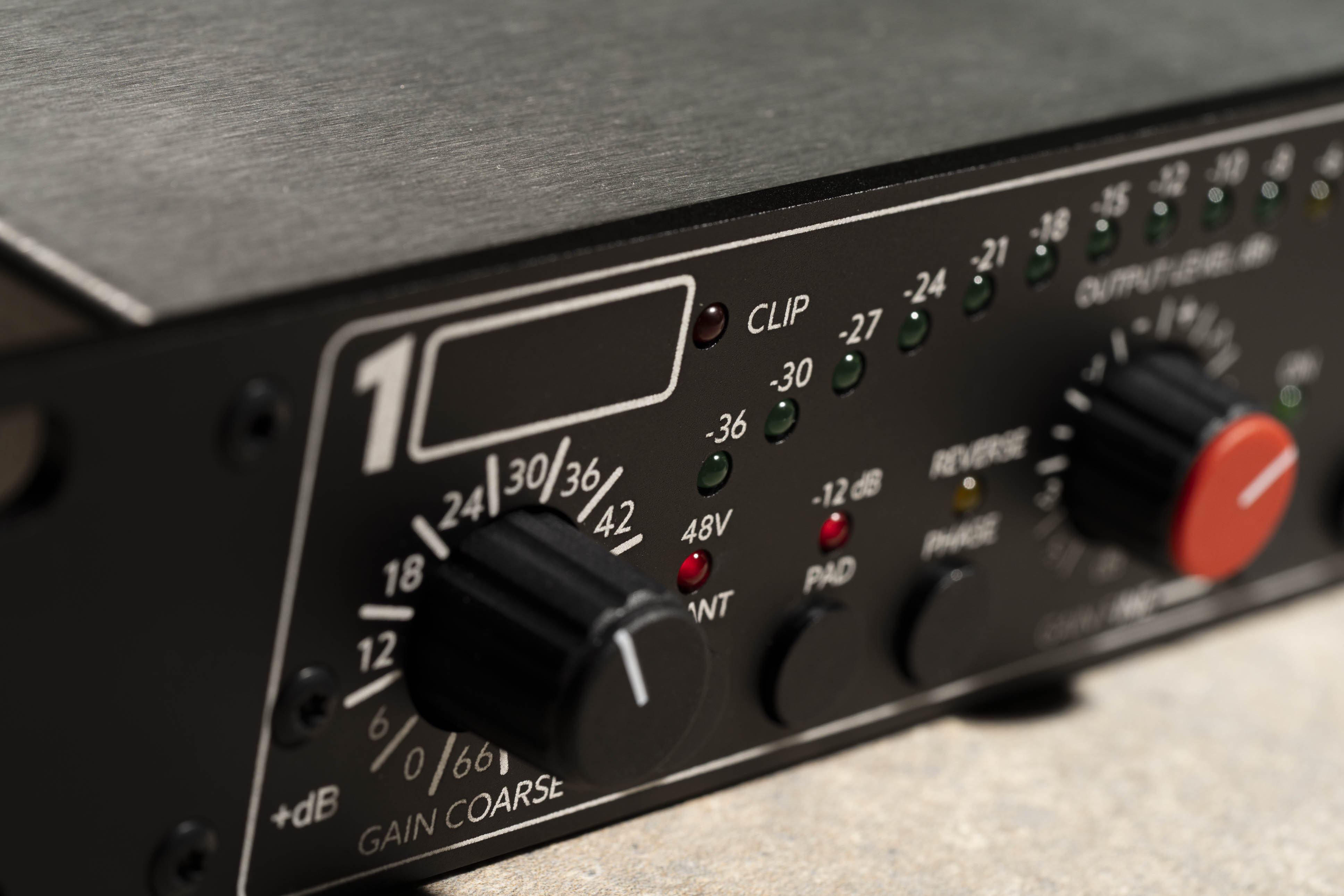

Gain 0...+66 dB switchable in 12 steps of 6 dB each
Programmable intelligent muting system
Pad switch for -12 dB pre-attenuation
Phantom power 48 volt switchable
Switchable phase inversion
Separate clip display
Optional: Ultra High Quality Class-A front end
Optional: GP-IO control

2-channel microphone preamplifier in premium quality The F355 from Lake People is an extremly... more

Close menu

2-channel microphone preamplifier in premium quality

The F355 from Lake People is an extremly low-noise microphone preamplifier with excellent sound characteristics and luxurious features.

The F-Series from Lake People includes absolutely high-quality audio products with unusual features, the best technical data and perfect workmanship.

The practical, clear and simple precision tool ensures exact signal transmission, which amplifies incoming signals but does not alter them negatively.

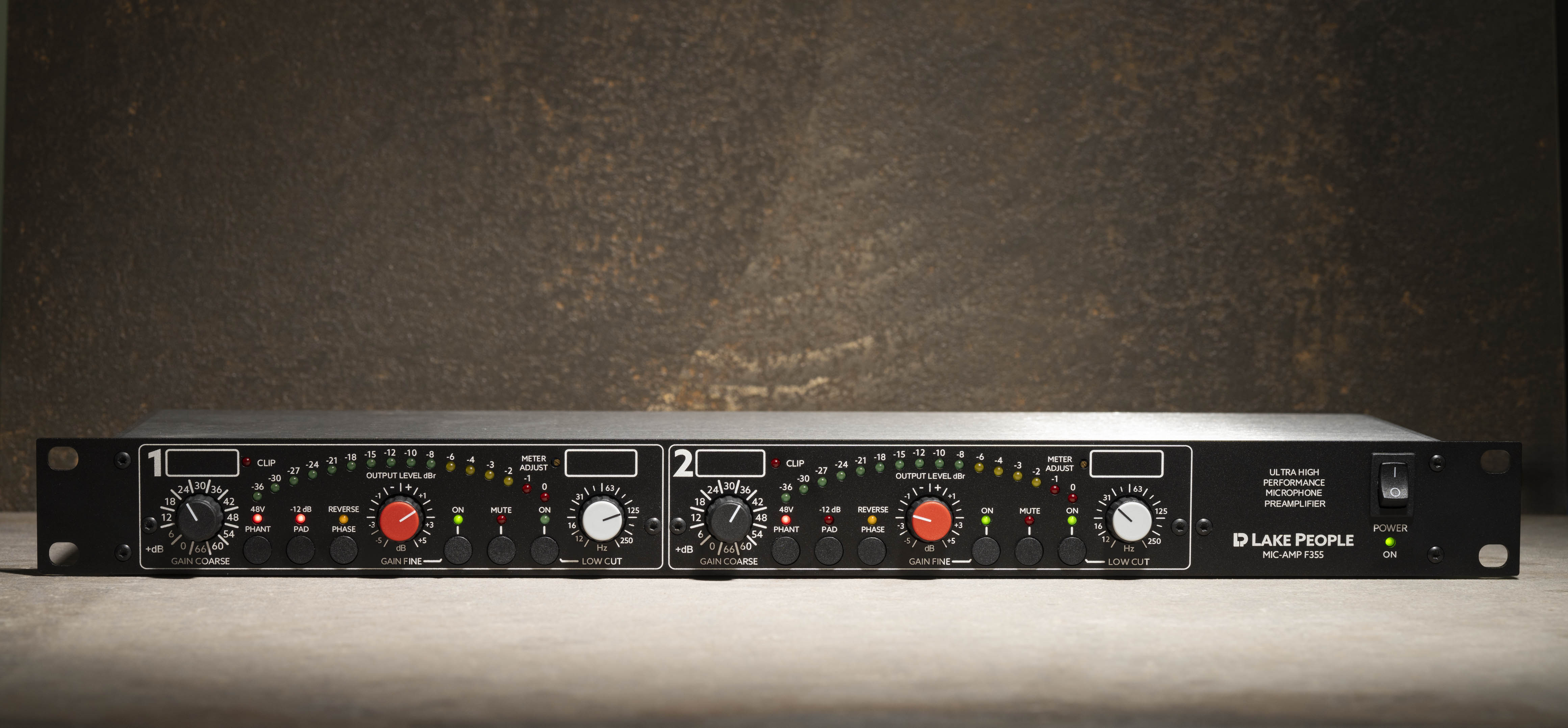

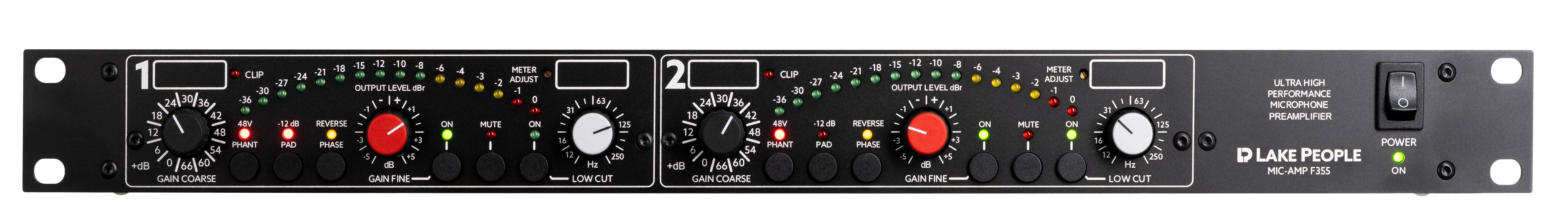

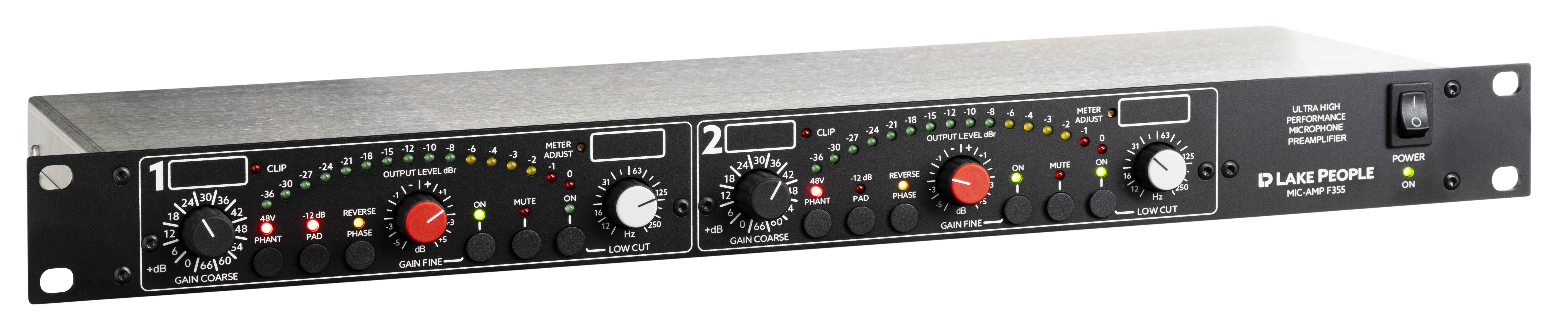

The 19-inch housing is made of pure stainless steel with a gray front and is designed for installation in a rack. This protects the preamplifier from external mechanical influences.

Features per channel:

Electronically balanced input via XLR
Gain 0...+66 dB switchable in 12 steps of 6 dD
Deactivatable gain fine adjustment with center detent potentiometer +/- 5 dB
Deactivatable lo-cut, 12 dB/oct, with variable insert 12...250 Hz
Noise -129 dB at 60 dB gain
Pad switch for -12 dB pre-attenuation
Programmable intelligent muting system
Phantom power 48 V switchable
Phase inversion switchable
16-step fast level display, 0 ... -36 dBr calibratable on the front
Additional separate clip display

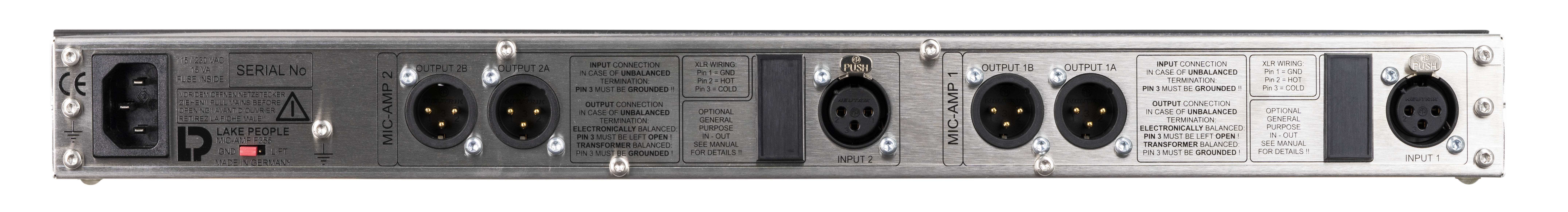

2 x balanced outputs via XLR

Lake People - solutions for the highest standards of sound and reliability

The entire development and production takes place in the factory in Constance, and even the suppliers are largely from Germany. This results in A/D and D/A converters, microphone, headphone and phono amplifiers as well as a wide range of signal converters with the well-deserved “Made in Germany” seal of quality

Close menu

Max. Input Voltage:	> +21 dBu ( > 33 dBu mit pad)
dimensions:	483 x 44 x 166 mm (WxHxD)
housing form:	19" / 1 HE
output impedance:	< 30 Ohm
Input Impedance:	5 kOhm
additional features:	variabler Lo-Cut, Pad, 48V Phantomspeisung, Phasenumkehr, 16-stufige Pegelanzeige
Line I/O:	0 / 2 (XLR)
max. output level:	> +25 dBu
mic gain:	0 - +66 dB
signal-to-noise ratio (SNR):	-129 dB (@ 60 dB gain)
power supply:	Internal 230 V / 115 V AC
THD+N (@ -1 dBFs):	< 0,001 %
frequency range:	5 Hz - 150 kHz (-3 dB)
