Lake People MPA RS 01

This product is currently not available.

orderable

Item number: 1006400
EAN: 4262404460118

699.01EUR *

incl. VAT plus shipping costs

2-ch Highest Quality Microphone Preamplifier more

Close menu

Farbe der Gehäusefüße wählbar
2 elektronisch symmetrische Eingänge über XLR

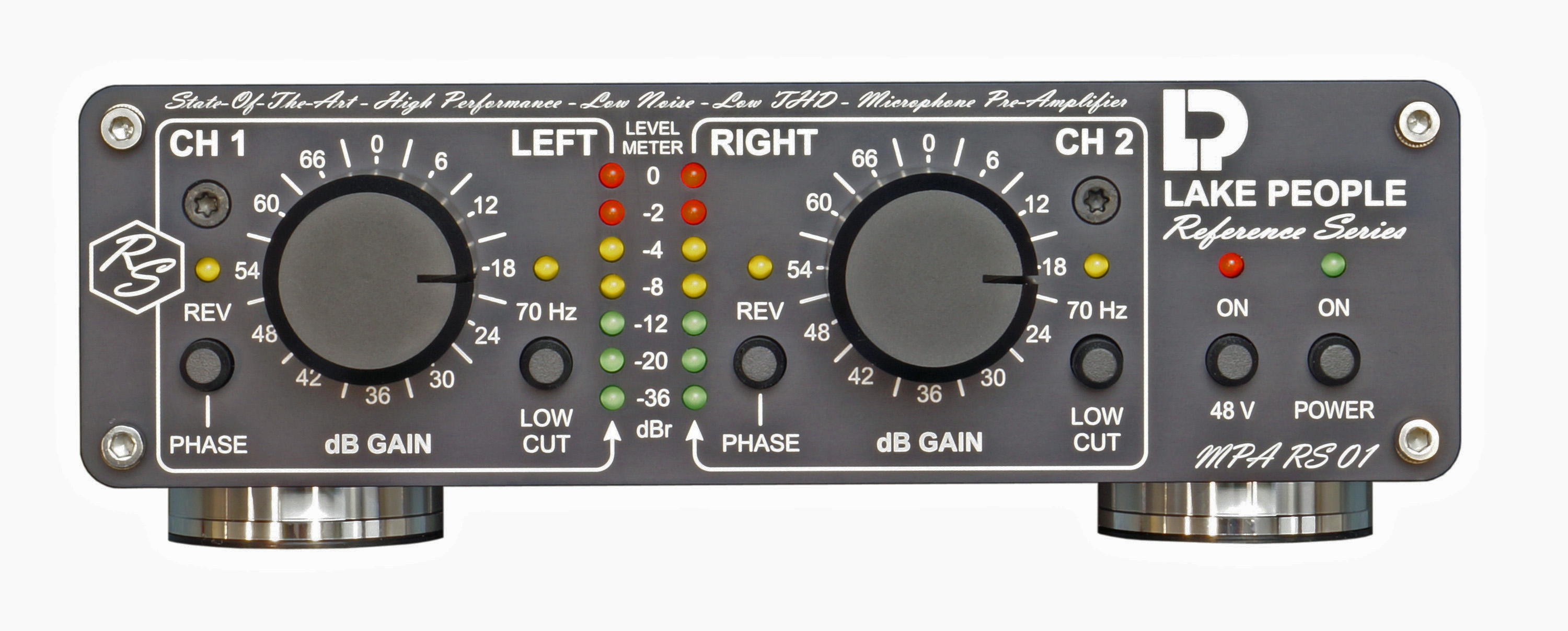

Verstärkung 0 ... +66 dB schaltbar in 12 Stufen zu 6 dB
Schaltbarer Lo-Cut, 12 dB/Okt. mit 70 Hz Eckfrequenz
Phasenumkehr schaltbar
Noise -129 dB bei 60 dB Verstärkung
7-stufige Pegelanzeige, -36 … 0 dBr, intern kalibrierbar
Elektronisch symmetrischer Ausgang über XLR
Zusätzlich unsymmetrische Ausgänge über Cinch
Phantomspeisung 48 Volt für je 2 Kanäle schaltbar
Stromversorgung über USB Typ B, 5 - 5.5 V, 1 A

The REFERENCE SERIES from Lake People covers absolutely high-level audio products with... more

Close menu

The REFERENCE SERIES from Lake People covers absolutely high-level audio products with outstanding features, best technical data and perfect craftsmanship.

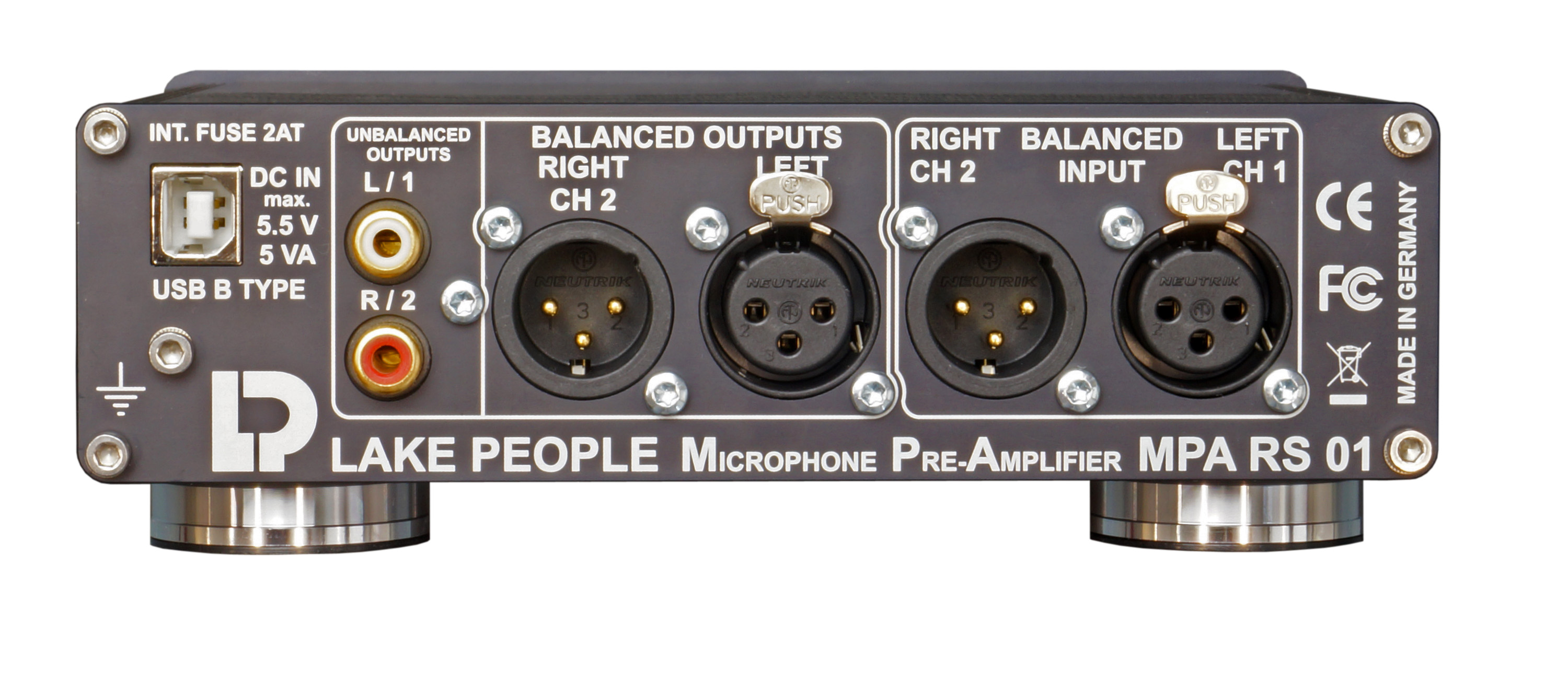

MPA RS 01 is a two-channel ultra-low noise microphone preamplifier with excellent audio performance and more than common features. Ideal for "on-loation" recording, bypassing insufficient mixing console preamps or " direct-to-tape" sessions. Gain is settled with costly 12-step switches and so exactly reproducable and equal for both channels. The amp is powered by a USB wallplug adaptor, a standard USB type-B and Micro-USB socket are present on the back panel.

Take a look at ADC RS 04 to create a second-to-none compact recording device with Microphone input and digital output !!

Close menu

dimensions:	168 x 42 x 172 mm (BxHxT)
Max. Input Voltage:	> +20 dBu
housing form:	Desktop
output impedance:	< 30 Ohm
Input Impedance:	5 kOhm
Line I/O:	0 / 2 (RCA), 0 / 2 (XLR)
max. output level:	> +20 dBu (an 600 Ohm)
mic gain:	0 - +66 dB (12 Stufen mit 6dB)
power supply:	USB Typ B 5 V, 1 A
THD+N (@ -1 dBFs):	< 0,001 %
frequency range:	5 Hz - 100 kHz (-3 dB)
amplifier channels:	2
Weight:	0,90 kg
