Lake People Mic-Amp F311 D

in stock

Item number: 1006620
EAN: 4262404460170

1,049.90EUR *

incl. VAT plus shipping costs

2-channel microphone preamplifier more

Close menu

Elektronisch symmetrische Ein- und Ausgänge über XLR
Schaltbarer Lo-Cut, 12 dB/Okt. mit 70 Hz Eckfrequenz
7-stufige Pegelanzeige, -36 … 0 dBr, intern kalibrierbar
präzise Stufenschalter zur Einstellung der Verstärkung
Phantomspeisung 48 Volt für je 2 Kanäle schaltbar
extrem breitbandig 5 Hz - 150 kHz @ - 3dB
0 ... +66 dB schaltbar in 12 Stufen à 6 dB
Noise -129 dB bei 60 dB Verstärkung
Unsymmetrische Ausgänge über Cinch

The F-SERIES from Lake People covers absolutely high-level audio products with outstanding... more

Close menu

The F-SERIES from Lake People covers absolutely high-level audio products with outstanding features, best technical data and perfect craftsmanship.

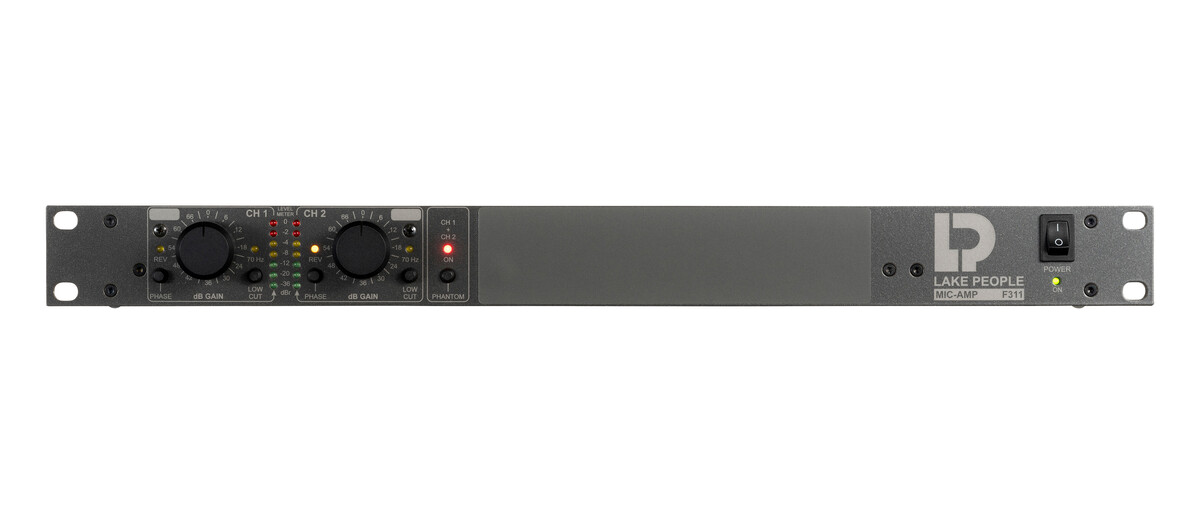

MIC-AMP F311-D is a two-channel ultra-low noise microphone preamplifier with excellent audio performance and more than common features. Ideal for "on-loation" recording, bypassing insufficient mixing console preamps or " direct-to-tape" sessions. Gain is settled with costly 12-step switches and so exactly reproducable and equal for both channels. The simple and cheap gain adjustment via potentiometers we leave to the competition. The amp is mains powered via a ISC/CEE socket with either 230 or 115 V AC (internally switchable). Take a look at ADC F444 to create a second-to-none compact recording device !

Close menu

Max. Input Voltage:	> +21 dBu
dimensions:	483 x 44 x 166 mm (WxHxD)
housing form:	19" / 1 HE
output impedance:	< 30 Ohm
Input Impedance:	5 kOhm
additional features:	Lo-Cut, 48V Phantomspeisung, Phasenumkehr, 4-stufige Pegelanzeige
max. output level:	> +25 dBu
mic gain:	0 - +66 dB
signal-to-noise ratio (SNR):	-129 dB (@ 60 dB gain)
power supply:	Internal 230 V / 115 V AC
THD+N (@ -1 dBFs):	< 0,001 %
frequency range:	5 Hz - 70 kHz (-3 dB)
amplifier channels:	2
