Lake People Mic-Amp F311 Q
4-channel microphone preamplifier
4-channel microphone preamplifier more
- Elektronisch symmetrische Ein- und Ausgänge über XLR
- Schaltbarer Lo-Cut, 12 dB/Okt. mit 70 Hz Eckfrequenz
- 7-stufige Pegelanzeige, -36 … 0 dBr, intern kalibrierbar
- präzise Stufenschalter zur Einstellung der Verstärkung
- Phantomspeisung 48 Volt für je 2 Kanäle schaltbar
- extrem breitbandig 5 Hz - 150 kHz @ - 3dB
- 0 ... +66 dB schaltbar in 12 Stufen à 6 dB
- Unsymmetrische Ausgänge über Cinch
- Noise -129 dB bei 60 dB Verstärkung
The F-SERIES from Lake People covers absolutely high-level audio products with outstanding... more

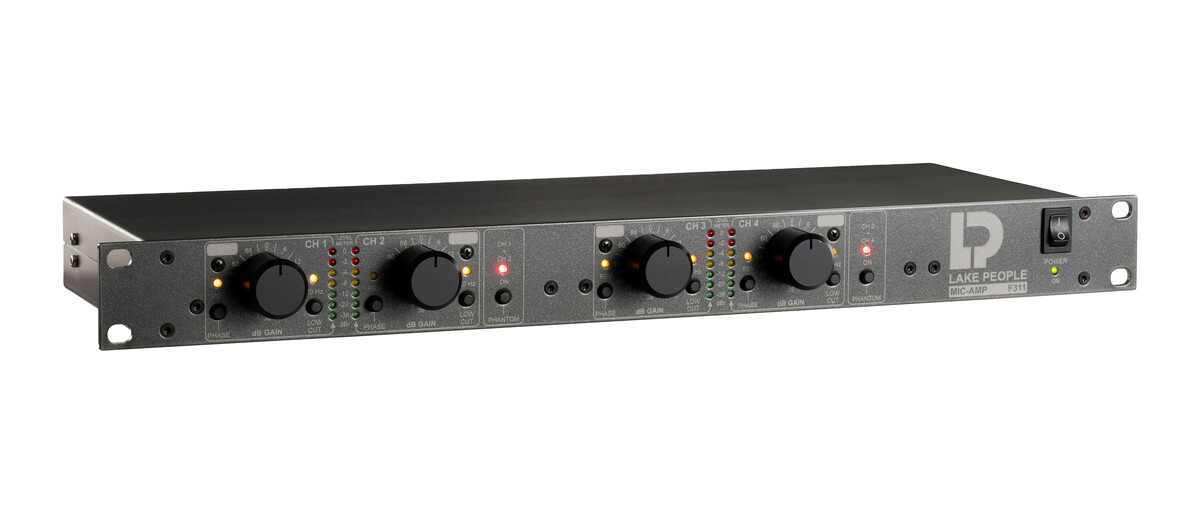

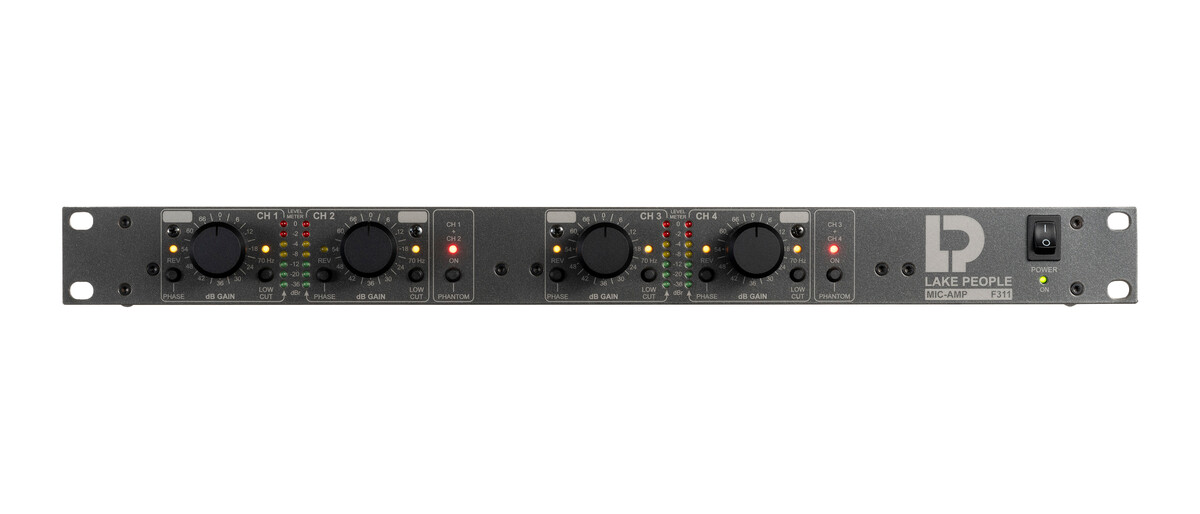

The F-SERIES from Lake People covers absolutely high-level audio products with outstanding features, best technical data and perfect craftsmanship. MIC-AMP F311-Q is a four-channel ultra-low noise microphone preamplifier with excellent audio performance and more than common features. Ideal for "on-loation" recording, bypassing insufficient mixing console preamps or " direct-to-tape" sessions. Gain is settled with costly 12-step switches and so exactly reproducable and equal for both channels. The simple and cheap gain adjustment via potentiometers we leave to the competition. The amp is mains powered via a ISC/CEE socket with either 230 or 115 V AC (internally switchable).
Take a look at ADC F444 to create a second-to-none compact recording device !
| dimensions: | 483 x 44 x 166 mm (WxHxD) |
| Max. Input Voltage: | > +21 dBu |
| housing form: | 19" / 1 HE |
| output impedance: | < 30 Ohm |
| Input Impedance: | 5 kOhm |
| additional features: | Lo-Cut, 48V Phantomspeisung, Phasenumkehr, 4-stufige Pegelanzeige |
| Line I/O: | 0 / 4 (XLR) |
| max. output level: | > +25 dBu |
| mic gain: | 0 - +66 dB |
| signal-to-noise ratio (SNR): | -129 dB (@ 60 dB gain) |
| power supply: | Internal 230 V / 115 V AC |
| THD+N (@ -1 dBFs): | < 0,001 % |
| frequency range: | 5 Hz - 70 kHz (-3 dB) |
| amplifier channels: | 4 |
| Weight: | 2,55 kg |
1x MIC-AMP F311-Q
1x Bedienungsanleitung
1x Netzkabel
Item number: 1006620
