Lake People ANA-TOOL F822

Delivery time approx. 2 - 3 days after receipt of order

Item number: 1006214
EAN: 4262404460149

949.91EUR *

incl. VAT plus shipping costs

8 ch Unbalancing Amplifier, 19" more

Close menu

Differenzierung der Eingangssignale mit speziellen Schaltungen für höchste Gleichtaktunterdrückung
2 identische Sektionen mit 4 Kanälen von Studio-Level auf Konsumer- Level “-10 dBu”
Frontseitige Spindeltrimmer zur Pegeleinstellung im Bereich -21 … +3 dB
Eingänge optimiert für Line-Level Signale

Unbalancing, impedance and level matching unit for interfacing between consumer- and studio... more

Close menu

Unbalancing, impedance and level matching unit for interfacing between consumer- and studio equipment.

- 2 x 4 identical sections from studio level to consumer level "-10 dBu"

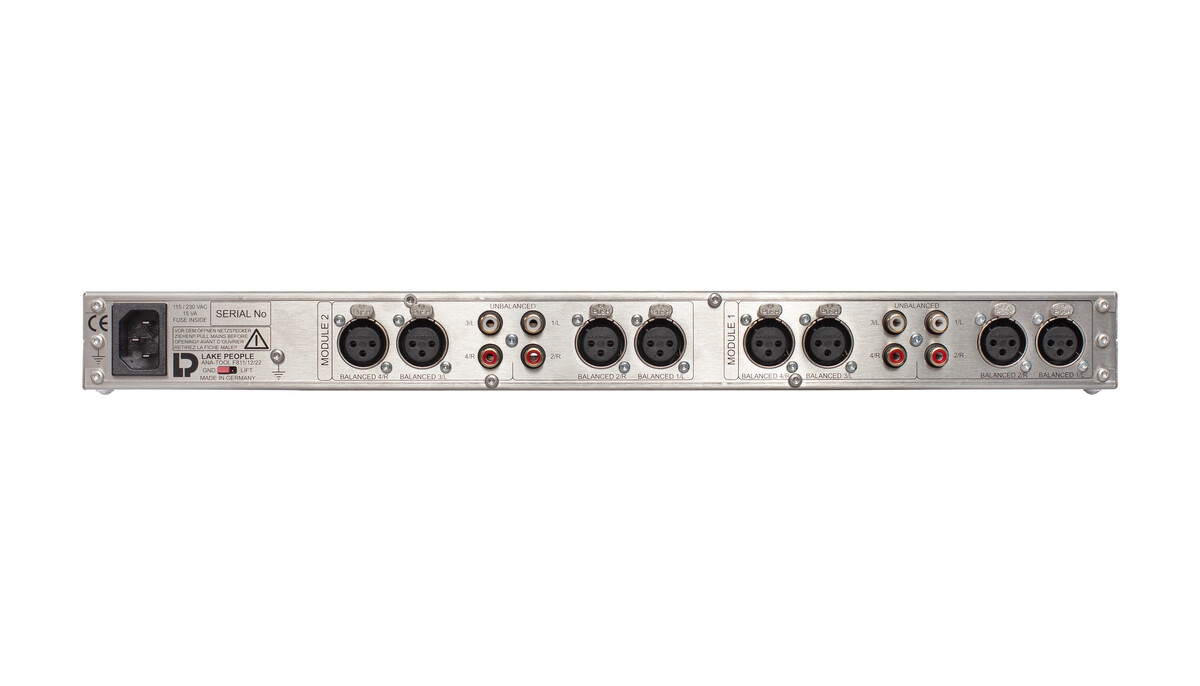

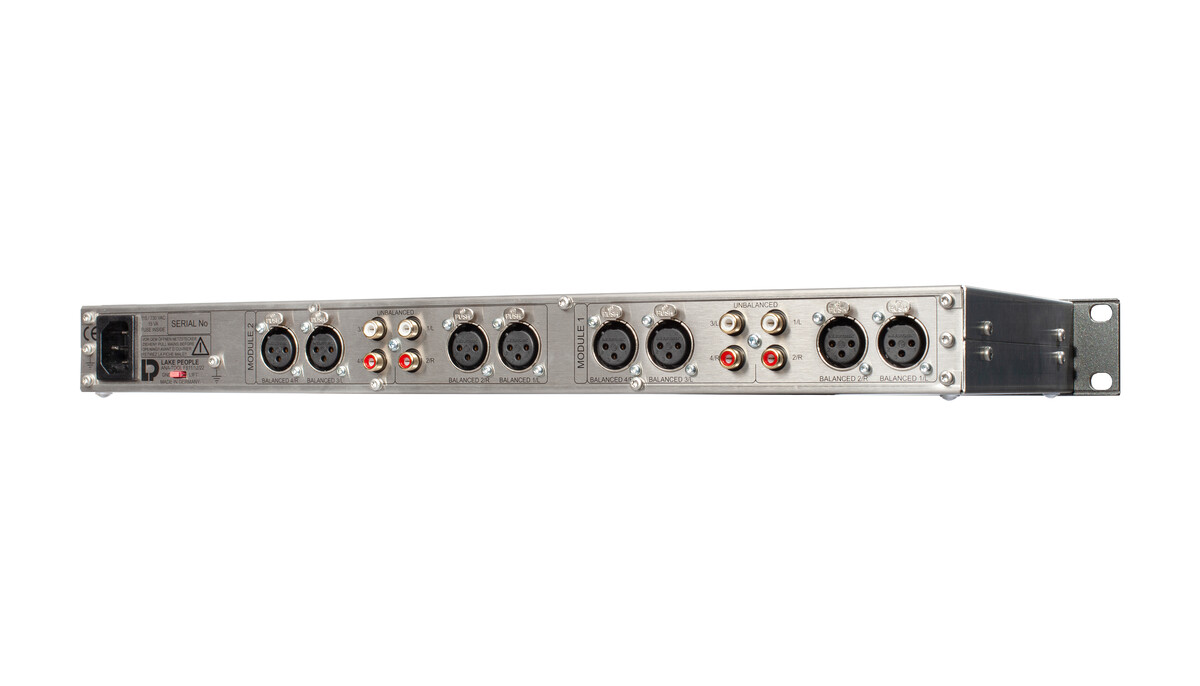

- Rear inputs via gold plated XLR sockets
- Inputs optimized for studio level signals signals
- Impedance 20 kohms
- internal differencial amplifiers with special circuitry for highest CMRR
- Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -21 … +3 dB
- Unbalanced outputs on the front and rear panel with gold plated RCA connectors
- Output impedance < 15="">
- 19”, 1 U stainless steel case, front color dark grey

Close menu

Max. Input Voltage:	> +25 dBu
dimensions:	483 x 44 x 166 mm (WxHxD)
housing form:	19" / 1 HE
output impedance:	< 15 Ohm
Line I/O:	8 / 8 (XLR/RCA)
max. output level:	> +21 dBu
mic gain:	20 kOhm
power supply:	Internal 230 V / 115 V AC
THD+N (@ -1 dBFs):	< -100 dB
frequency range:	5 Hz - 70 kHz ( -1 dB)
crosstalk:	< -100 dB @ 15 kHz
gain range:	-21 - +3 dBu

Close menu

1x ANA-TOOL F822
1x Bedienungsanleitung
1x Netzkabel
