Lake People ANA-TOOL F812

Delivery time approx. 2 - 3 days after receipt of order

Item number: 1006213
EAN: 4262404460132

949.91EUR *

incl. VAT plus shipping costs

4+4 ch Un/ Balancing Amplifier more

Close menu

Symmetrierung der Ausgangssignale mit höchster Unsymmetriedämpfung
4 identische Sektionen von Konsumer-Level “-10 dBu” auf Studiopegel
4 x Desymmetrier-Verstärker (Differenz-Verstärker)
Symmetrierung, Impedanz und Pegelanpassung
Frontseitige Spindeltrimmer zur Pegeleinstellung
4 x Symmetrier-Verstärker

Balancing, impedance and level matching unit for interfacing between consumer- and studio... more

Close menu

Balancing, impedance and level matching unit for interfacing between consumer- and studio equipment.

Module 1:
- 4 identical sections from consumer level to “-10 dB” to studio level
- Rear inputs via gold plated Cinch (RCA) sockets

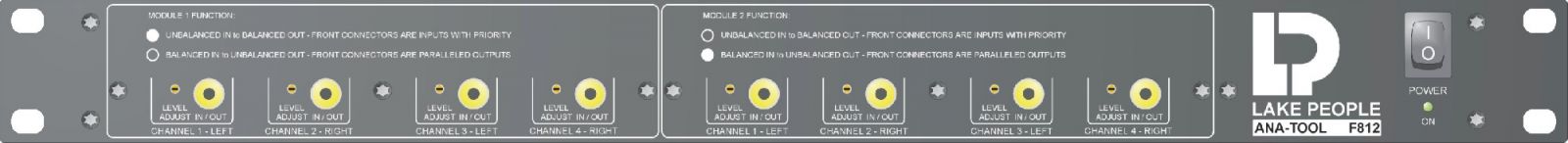

- Front inputs via gold plated Cinch (RCA) sockets with priority
- Front accessible multiturn trimpots for level adjustment
- Balancing of the output signals with highest common mode rejection ratio (CMRR)

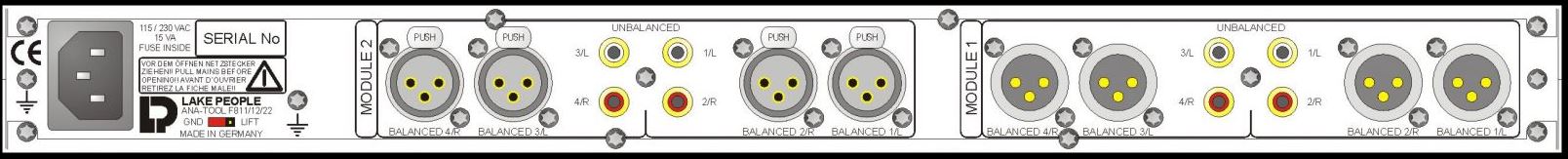

- Rear output with gold plated XLR connectors

Module 2:
- 4 identical sections from studio level to consumer level “-10 dB”
- Rear inputs balanced via gold plated XLR sockets
- Unbalancing of the input signal with highest common mode rejection ratio (CMRR)
- Front accessible multiturn trimpots for level adjustment
- Unbalanced outputs on the front- and rearpanel with gold plated Cinch (RCA) sockets

Close menu

dimensions:	483 x 44 x 166 mm (WxHxD)
Max. Input Voltage:	Modul 1: > +21 dBu / Modul 2: > +25 dBu
housing form:	19" / 1 HE
Input Impedance:	Modul 1: 50 kOhm / Modul 2: 20 kOhm
Line I/O:	4 / 4 (XLR/RCA)
max. output level:	Modul 1: Modul 2:
power supply:	Internal 230 V / 115 V AC
THD+N (@ -1 dBFs):	< -100 dB
frequency range:	5 Hz - 70 kHz ( -1 dB)
crosstalk:	< -100 dB (@ 15 kHz)
gain range:	Modul 1: -3 - +21 dB / Modul 2: -21 - +3 dB

Close menu

1x ANA-TOOL F812
1x Bedienungsanleitung
1x Netzkabel
