Lake People ANA-TOOL F811

Delivery time approx. 2 - 3 days after receipt of order

Item number: 1006212
EAN: 4262404460125

949.91EUR *

incl. VAT plus shipping costs

8-ch Balancing Amplifier more

Close menu

Frontseitige Spindeltrimmer zur Pegeleinstellung im Bereich -3 … +21 dB
2 x 4 identische Sektionen von Konsumer-Level auf Studiopegel
Symmetrierung, Impedanz und Pegel-Anpassung
IRT konforme Ausgangsimpedanz 30 Ohm
Eingänge optimiert für “-10 dBu” Signale

Balancing, impedance and level matching unit for interfacing between consumer- and studio... more

Close menu

Balancing, impedance and level matching unit for interfacing between consumer- and studio equipment.

- 2 x 4 identical sections from consumer level to studio level

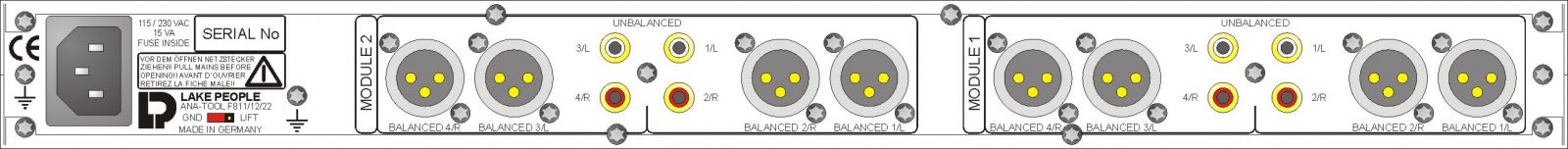

- Rear inputs via Cinch (RCA) sockets

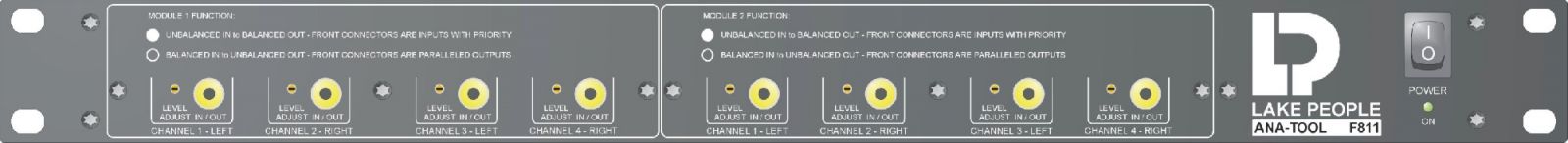

- Front inputs via Cinch (RCA) sockets with priority
- All inputs with gold plated contacts
- Inputs optimized for “-10 dBu” signals
- Impedance 50 kohms
- Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -3 … +21 dB
- Balancing of the output signals with optimized circuits for highest resistance- and common mode rejection ratio (CMRR)
- Output impedance 30 Ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey

Option:
Outputs with “active feedback” transformers (up to 8 tranformers may be installed)

Close menu

Max. Input Voltage:	> +21 dBu
dimensions:	483 x 44 x 166 mm (WxHxD)
housing form:	19" / 1 HE
output impedance:	30 Ohm
Input Impedance:	50 kOhm
Line I/O:	8 / 8 (XLR/RCA)
max. output level:	> +25 dBu
power supply:	Internal 230 V / 115 V AC
THD+N (@ -1 dBFs):	< -100 dB
frequency range:	5 Hz - 70 kHz ( -1 dB)
crosstalk:	< -100 dB (@ 15 kHz)
gain range:	-3 - +21 dB

Close menu

1x ANA-TOOL F811
1x Bedienungsanleitung
1x Netzkabel
