Mogami

Mogami AES0100BL

colour black, 1 Meter
Preview: Mogami AES0100BL Preview: Mogami AES0100BL Preview: Mogami AES0100BL Preview: Mogami AES0100BL Preview: Mogami AES0100BL Preview: Mogami AES0100BL Preview: Mogami AES0100BL
Mogami AES0100BL
Mogami AES0100BL
Mogami AES0100BL
Mogami AES0100BL
Mogami AES0100BL
Mogami AES0100BL
Mogami AES0100BL

in stock

  • Item number: 1007656
  • EAN: 4262404460972
60.21EUR *

incl. VAT plus shipping costs

Features Description Technical Data
Features
colour black, 1 Meter more
Close menu
  • Detaillierte und transparente Signalübertragung
  • Innenleiter mit 0,95 mm² Querschnittsfläche
  • Extrem weiter Übertragungsbereich
  • Stabilisierungsfasern im Inneren
  • Sehr geringe Kabelkapazität
  • Extrem dichter Spiralschirm
  • Beste Impulsübertragung
  • Zusätzlicher Masseleiter
  • Reinstes Kupfer
  • Sehr flexibel
Description
AES/EBU-Kabel, 110 Ohm, XLR Male - XLR Female Neutrik NC3MXX-B XLR Male Neutrik NC3FXX-B XLR... more
Close menu

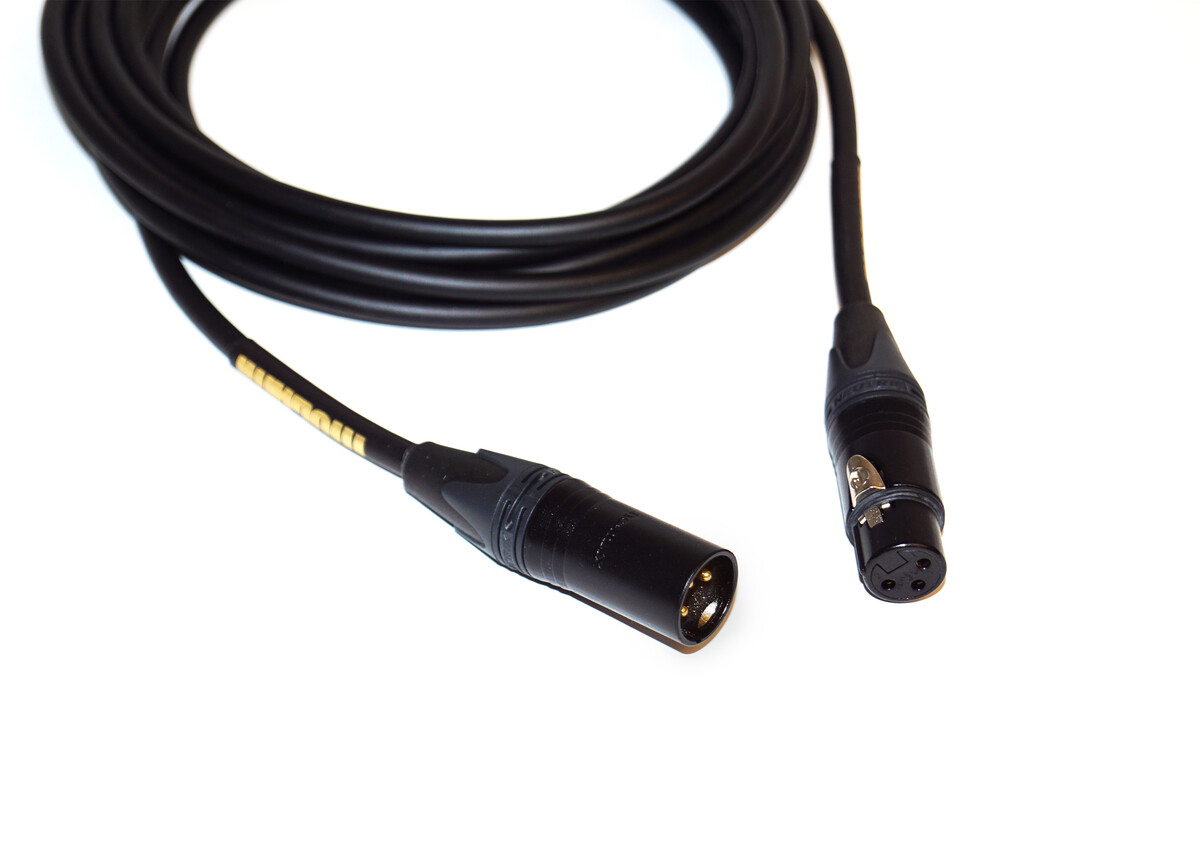

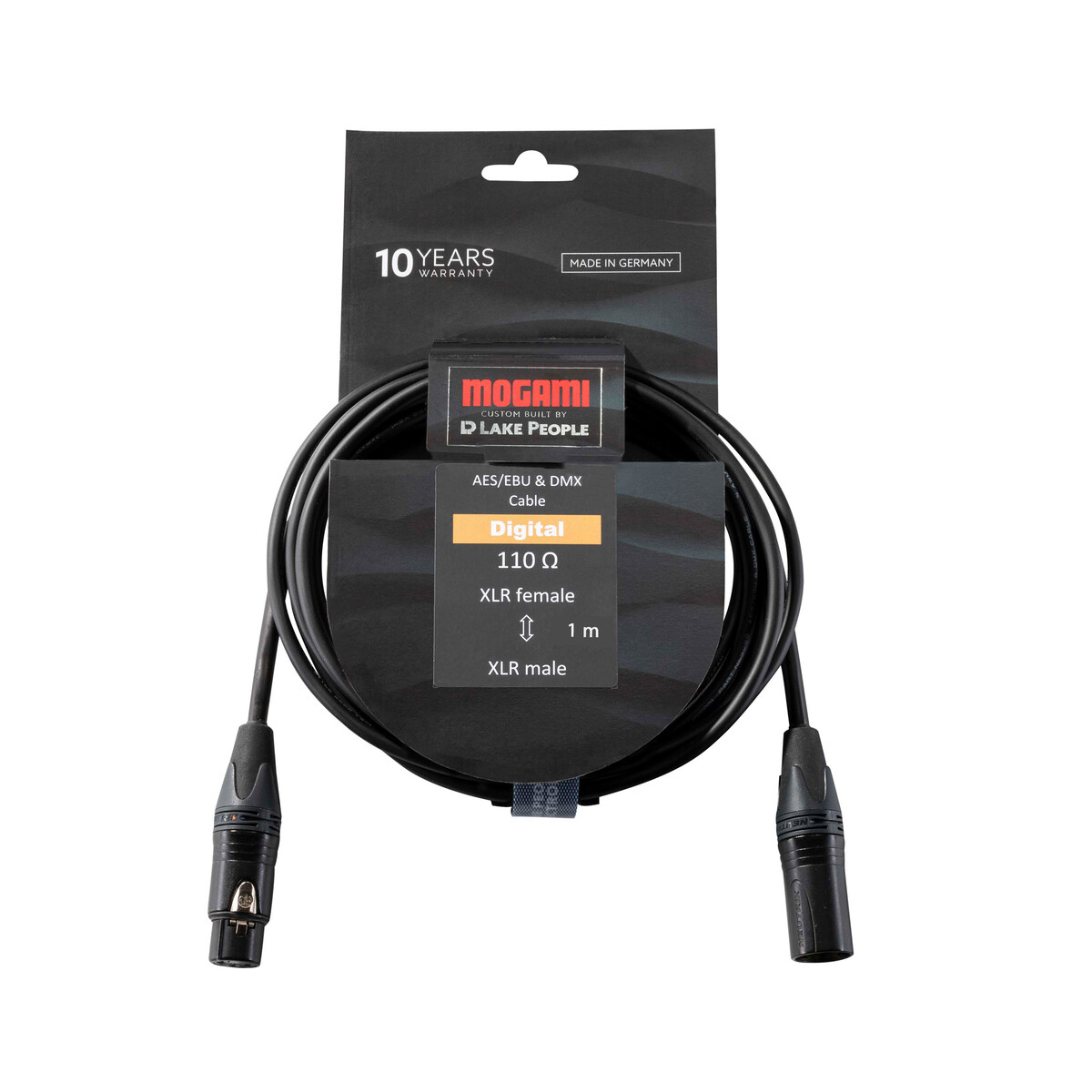

AES/EBU-Kabel, 110 Ohm, XLR Male - XLR Female

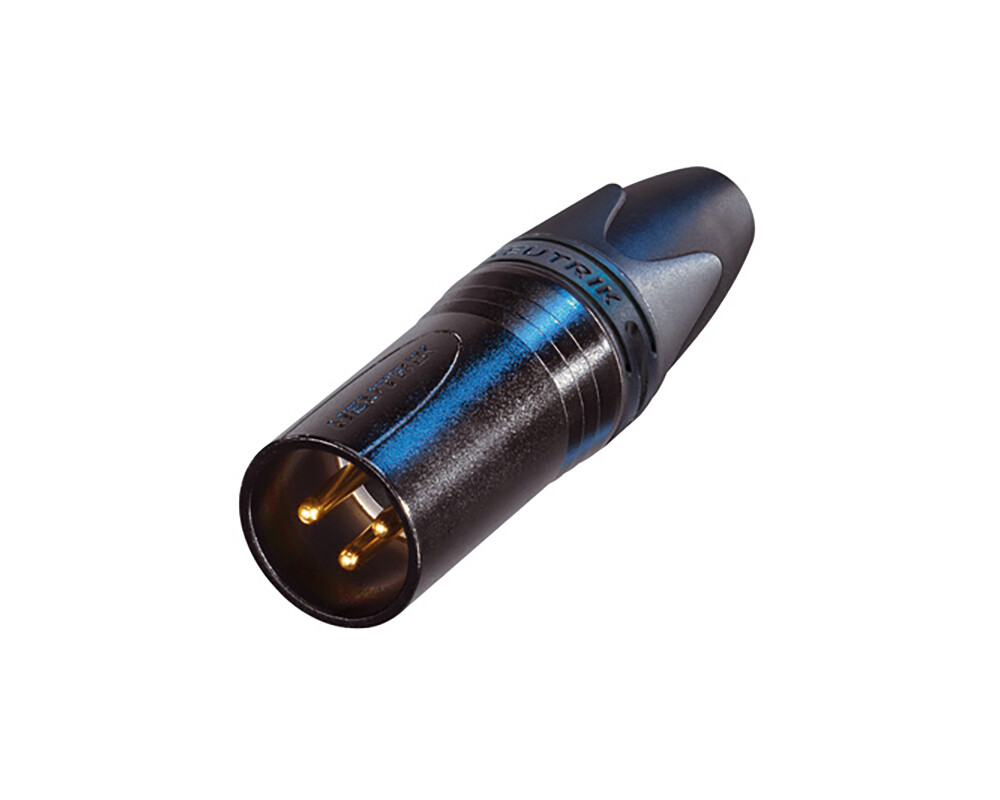

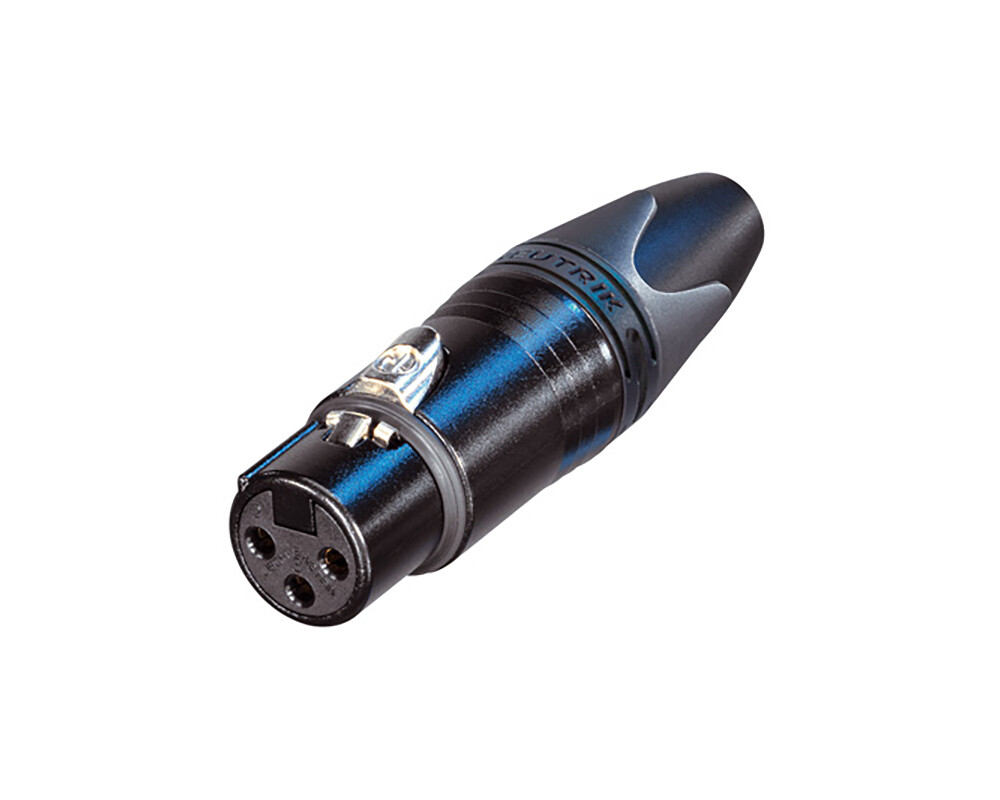

Neutrik NC3MXX-B XLR Male <> Neutrik NC3FXX-B XLR Female, schwarz-verchromte Gehäuse, goldbeschichtete Kontakte. Mogami 3080 110 Ohm AES/EBU Digital Audio Kabel, schwarz, symmetrisch

"Mogami by Lake People" cables made with passion made in Japan and assembled with highest precision in Germany

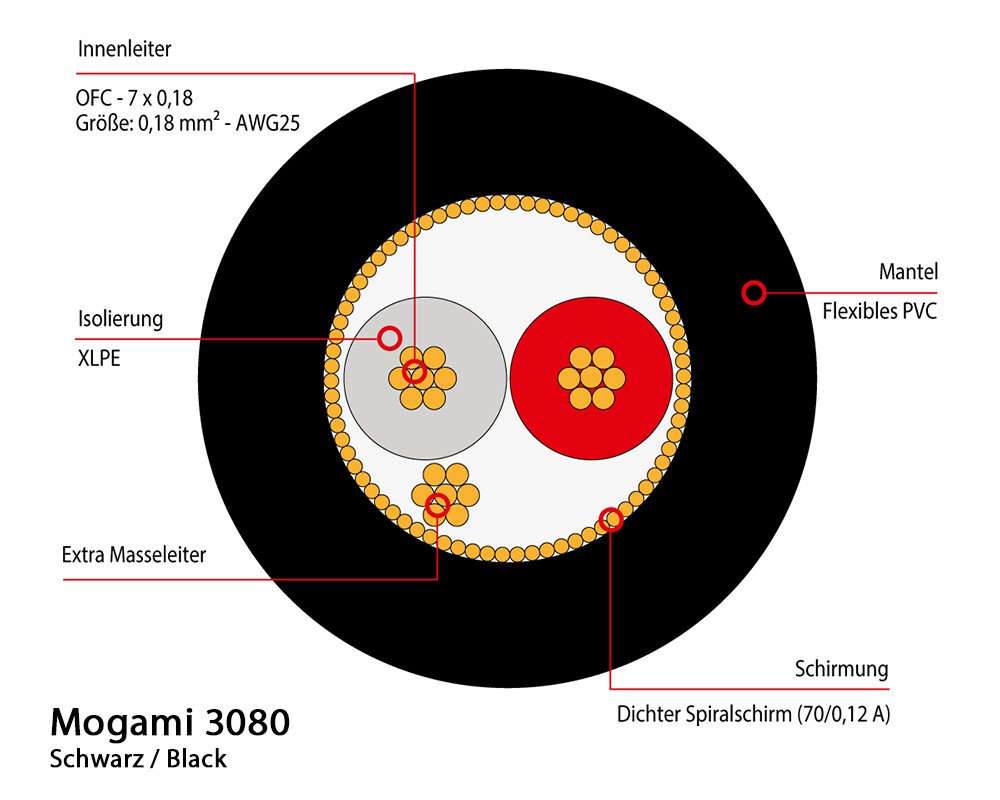

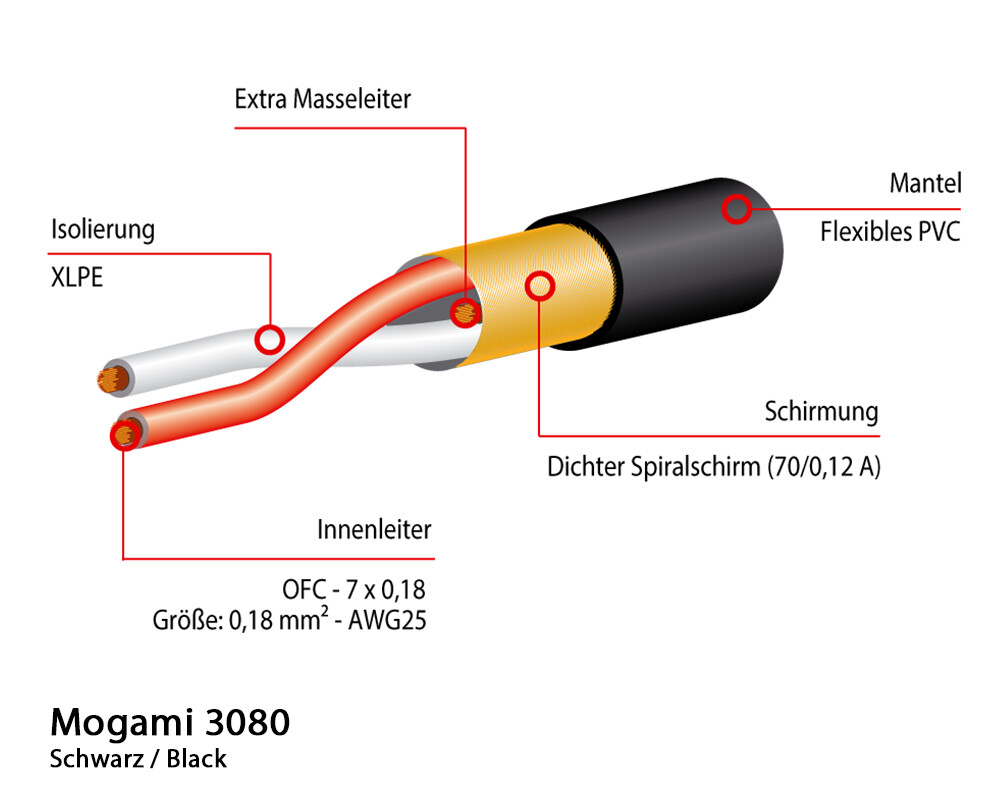

The Digital Cable 3080 from Mogami is optimized for the transmission of digital audio signals according to the AES/EBU standard. The required impedance of 110 Ohm is guaranteed with a tolerance of only ±5%.
The capacity of the cable is even smaller than that of analog cables - an insider tip even for analog high-end connections.

Technical Data
Close menu
attenuation: 0,069 dB/m (@ 6 MHz)
color: black
DC resistance: Inner Conductor: 0,11 Ohm/m / Shield: 0,02 Ohm/m
durability: 10.000 cycles
impedance: 110 Ohm ±5 %
inner conductor: Details: 7 x 0,18 A / Size: 0,18 mm² (AWG25)
insulation: Ov. Dia.: 1,5 mm / Material: XLPE / Colors: Red/Clear

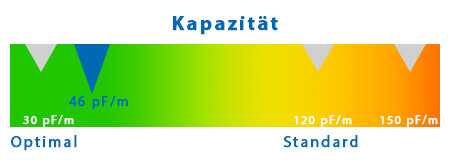

capacity (1 kHz, 20°C): 46 pF/m (@ 1 Khz, 20°C)
cable diameter: 5,0 mm
cable no.: 3080
length: 1 Meter
jacket material: Flexible PVC
drain wire: Details: 7 x 0,18 TA / Size: 0,178 mm² (AWG25)
shielding: Spiral Shield (90 x 0,10 A)
connector: XLR female (Neutrik NC3FXX-B), XLR male (Neutrik NC3MXX-B)
applicable temperature: -20°C - +60°C
Weight: 0,15 kg
