Mogami AES0050BL

This product is currently not available.

orderable

Item number: 1007655
EAN: 4262404460958

59.11EUR *

incl. VAT plus shipping costs

colour black, 0,5 Meter more

Close menu

Detaillierte und transparente Signalübertragung
Innenleiter mit 0,95 mm² Querschnittsfläche
Extrem weiter Übertragungsbereich
Stabilisierungsfasern im Inneren
Sehr geringe Kabelkapazität
Extrem dichter Spiralschirm
Beste Impulsübertragung
Zusätzlicher Masseleiter
Reinstes Kupfer
Sehr flexibel

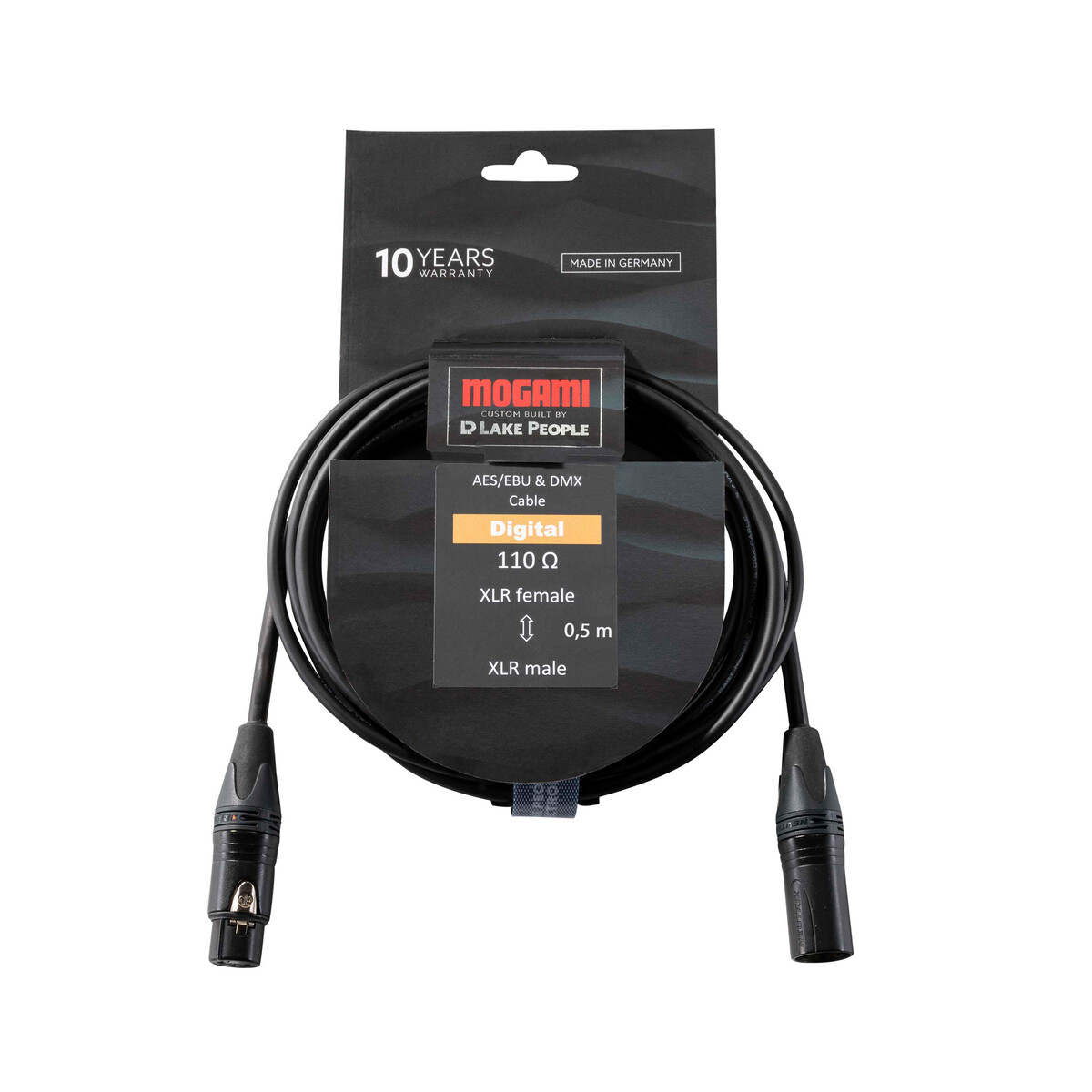

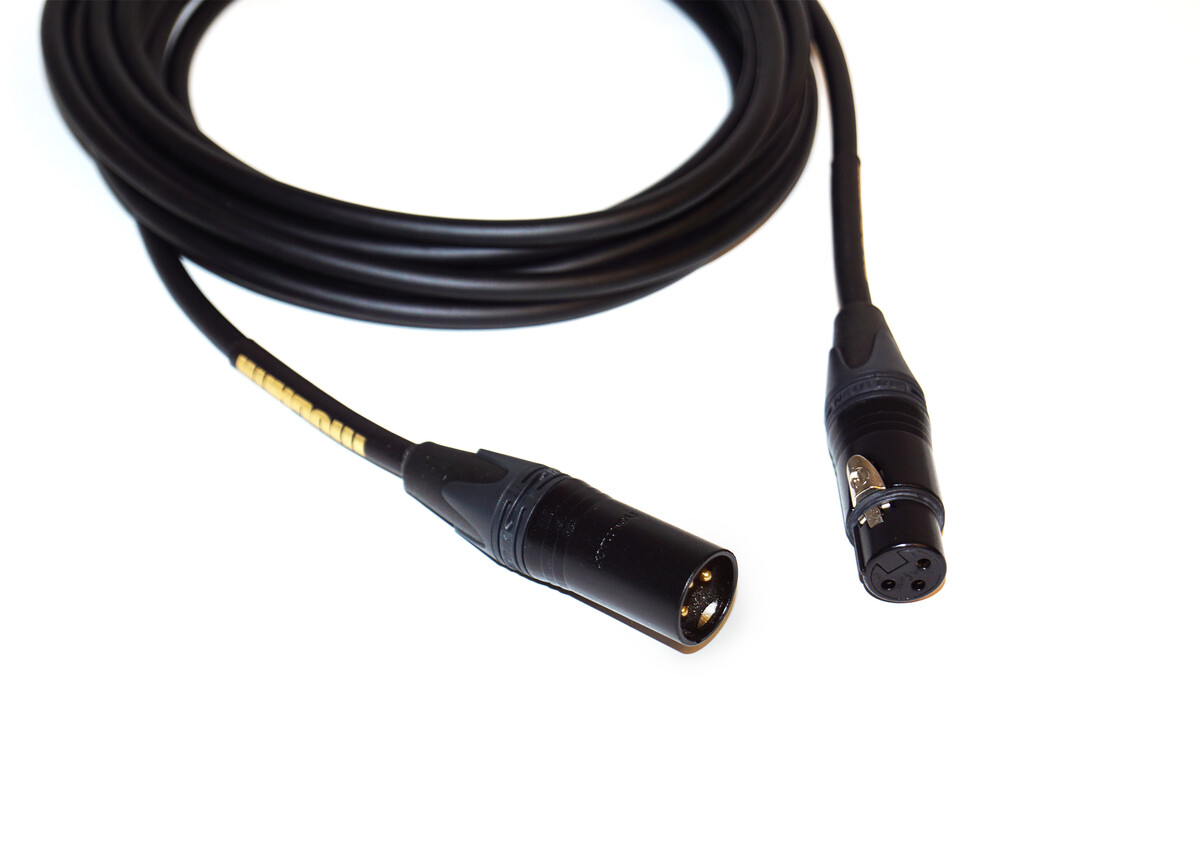

AES/EBU-Kabel, 110 Ohm, XLR Male - XLR Female Neutrik NC3MXX-B XLR Male Neutrik NC3FXX-B XLR... more

Close menu

AES/EBU-Kabel, 110 Ohm, XLR Male - XLR Female
Neutrik NC3MXX-B XLR Male <> Neutrik NC3FXX-B XLR Female, schwarz-verchromte Gehäuse, goldbeschichtete Kontakte. Mogami 3080 110 Ohm AES/EBU Digital Audio Kabel, schwarz, symmetrisch

"Mogami by Lake People" cables made with passion made in Japan and assembled with highest precision in Germany

The Digital Cable 3080 from Mogami is optimized for the transmission of digital audio signals according to the AES/EBU standard. The required impedance of 110 Ohm is guaranteed with a tolerance of only ±5%.
The capacity of the cable is even smaller than that of analog cables - an insider tip even for analog high-end connections.

Close menu

attenuation:	0,069 dB/m (@ 6 MHz)
color:	black
DC resistance:	Inner Conductor: 0,11 Ohm/m / Shield: 0,02 Ohm/m
durability:	10.000 cycles
impedance:	110 Ohm ±5 %

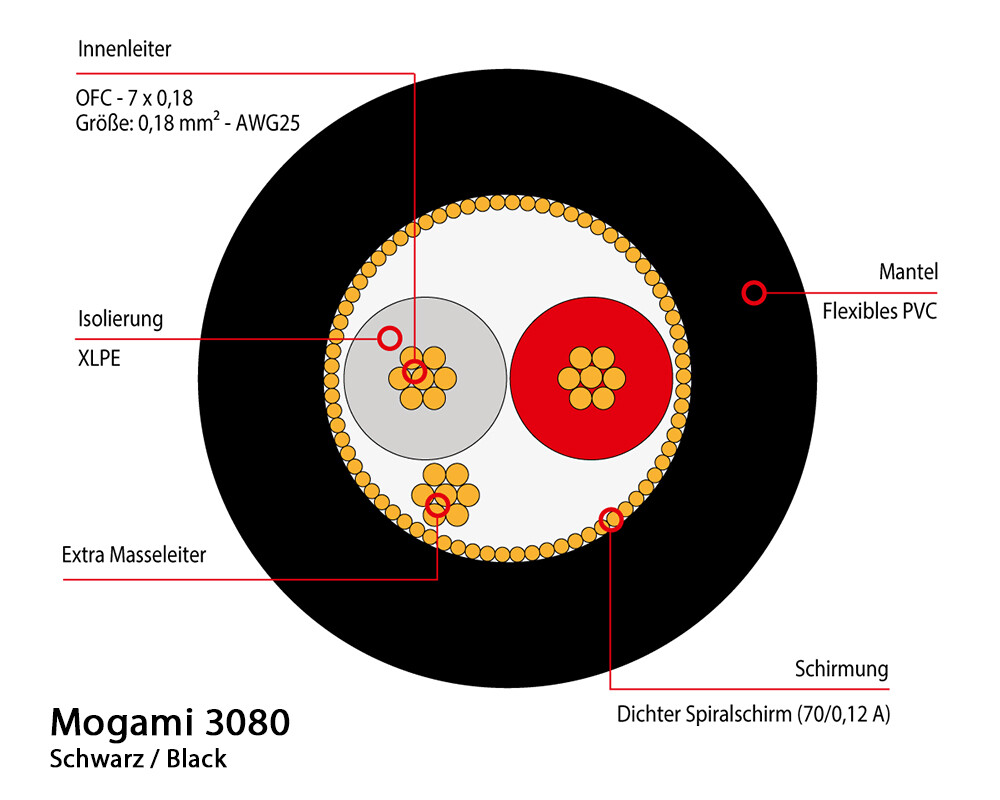

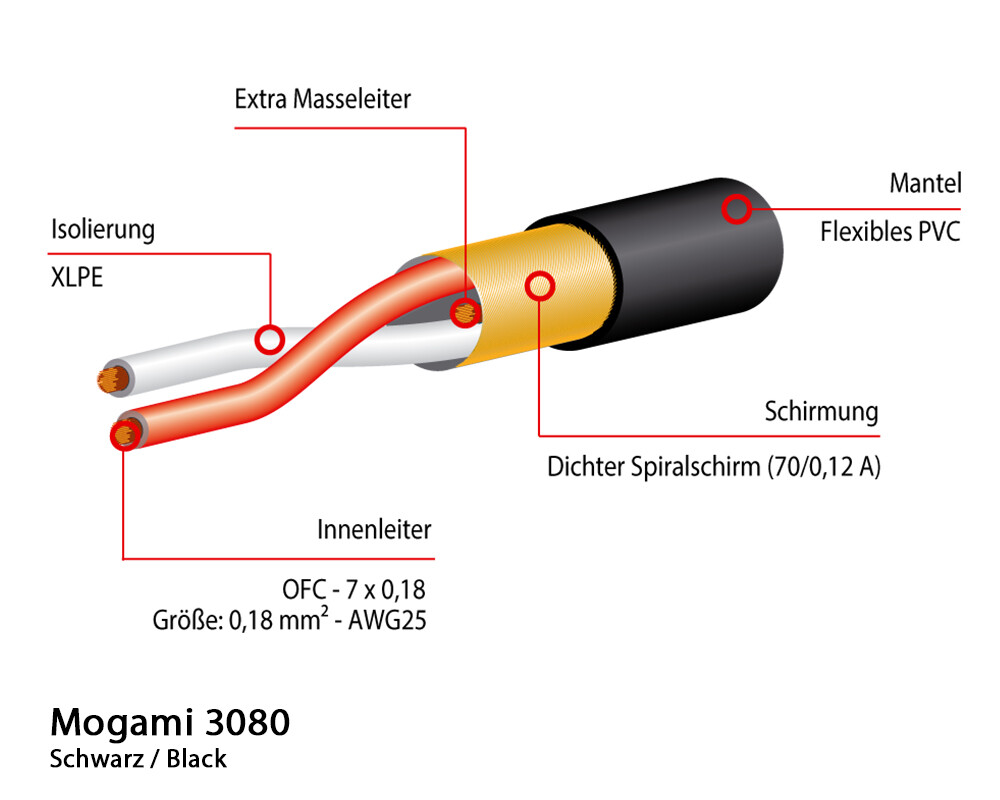

inner conductor:	Details: 7 x 0,18 A / Size: 0,18 mm² (AWG25)
insulation:	Ov. Dia.: 1,5 mm / Material: XLPE / Colors: Red/Clear

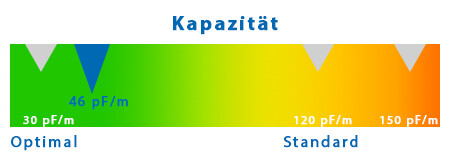

capacity (1 kHz, 20°C):	46 pF/m (@ 1 Khz, 20°C)
cable diameter:	5,0 mm
cable no.:	3080
length:	0,5 Meter
jacket material:	Flexible PVC
drain wire:	Details: 7 x 0,18 TA / Size: 0,178 mm² (AWG25)
shielding:	Spiral Shield (90 x 0,10 A)

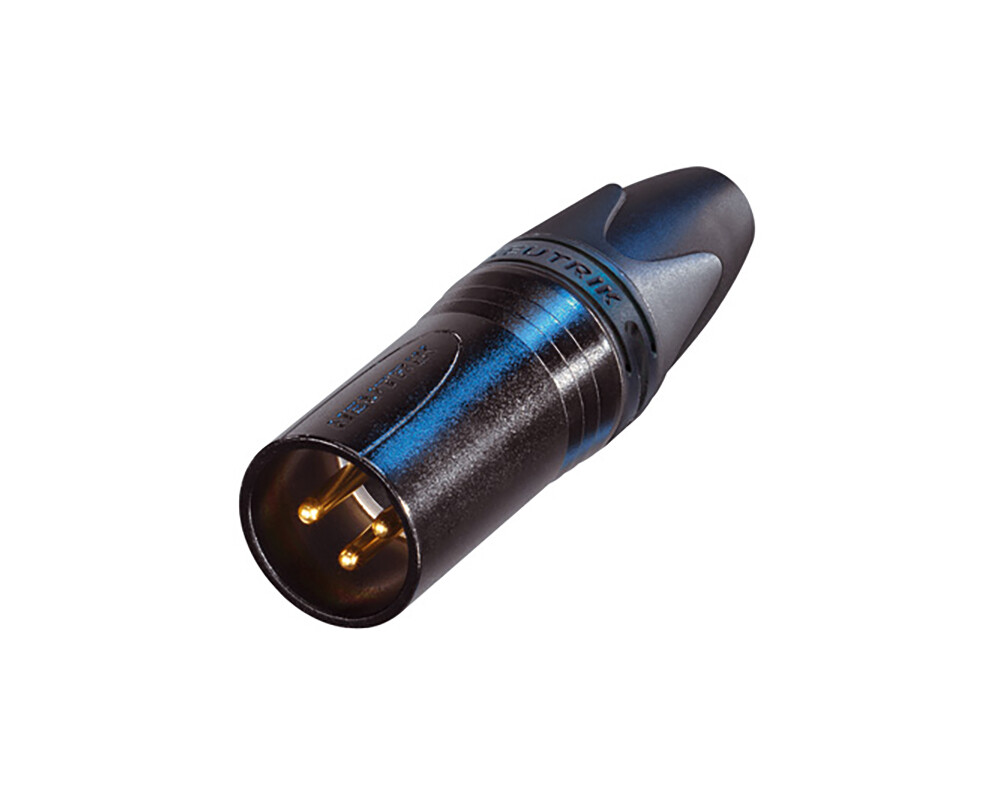

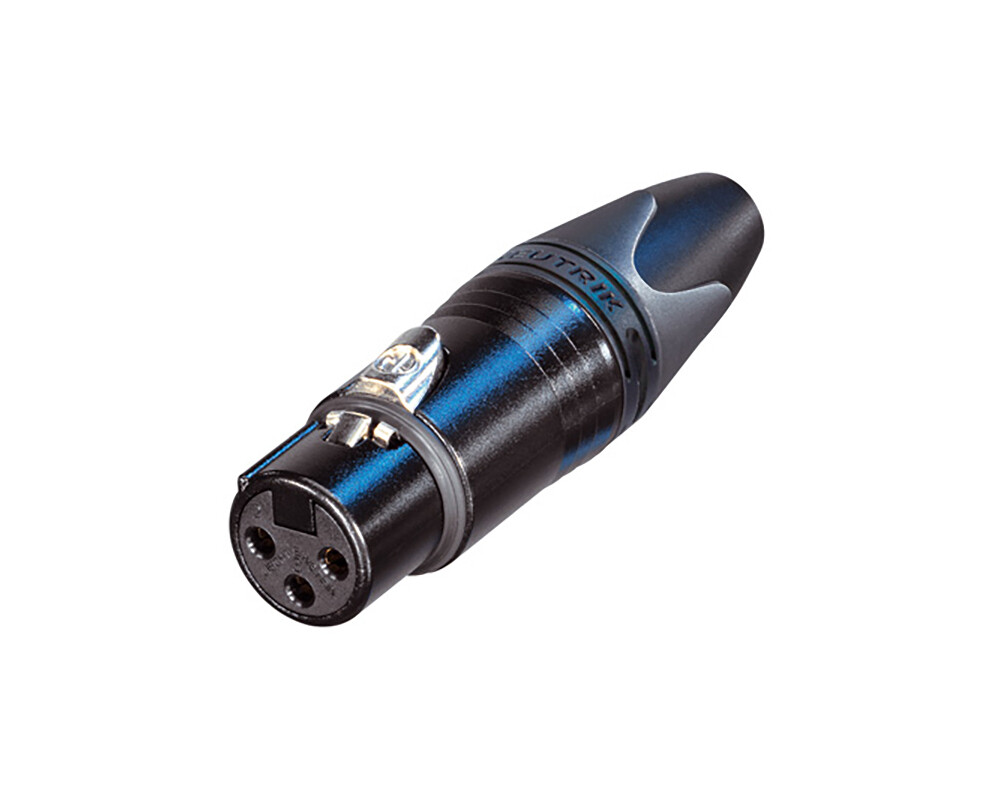

connector:	XLR female (Neutrik NC3FXX-B), XLR male (Neutrik NC3MXX-B)
applicable temperature:	-20°C - +60°C
Weight:	0,15 kg
