Mogami 3172-20 Tube Microphone Cable

in stock

Item number: 1004310

1,039.63EUR *

Specifically designed to be the highest sound quality tube microphone cable based on the... more

Specifically designed to be the highest sound quality tube microphone cable based on the representative electrical circuits of today's tube microphone including their power supply. Applicable to most tube microphones.

Close menu

no. of conductor:	6
color:	black
DC resistance:	Inner Conductor: MIC: 0,13 Ohm/m; BIAS: 0,23Ohm/m; Heater: 0,046 Ohm/m / Shield: 0,012 Ohm/m
durability:	13.000 cycles

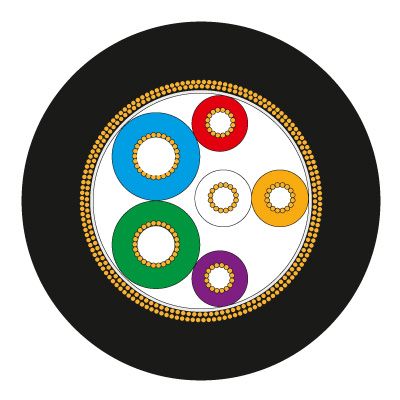

inner conductor:	Details: MIC:2 x (30 x 0,08 OFC); BIAS: 2 x (75/0,04 CU-SN); Heater: 2 x (80/0,08) / Size: 0,15 mm² (AWG26); 0,094 mm² (AWG28); 0,4 mm² (AWG22)
insulation:	Ov. Dia.: MIC: 1 mm; BIAS 1mm; Heizung: 1,6mm / Material: XLPE; XLPE; PVC / Colors: Orange/White; Red/Violett; Green/Blue
capacity (1 kHz, 20°C):	Conductor-Shield: MIC: 230 pF/m ; BIAS: 100pF/m; Heater: 93 pF/m / Conductor-Conductor: MIC: 56 pF/m; BIAS: 46pF/m; Heiater: 137 pF/m
cable diameter:	6,5 mm
cable no.:	3172
jacket material:	Flexible PVC
shielding:	Spiral Shield (120/0,10 A)
2. shield:	Spiral Shield (120/0,10 A)
applicable temperature:	-20°C - +60°C
Weight:	6,90 kg
