Mogami 2549-40 Microphone Cable, Neglex, Ø 6,0 mm

Mogami 2549-40 Microphone Cable, Neglex, Ø 6,0 mm

This product is currently not available.

Delivery time approx. 2 - 3 days after receipt of order

Item number: 1004257

847.96EUR *

incl. VAT plus shipping costs

Colour black, 200 m spool more

Close menu

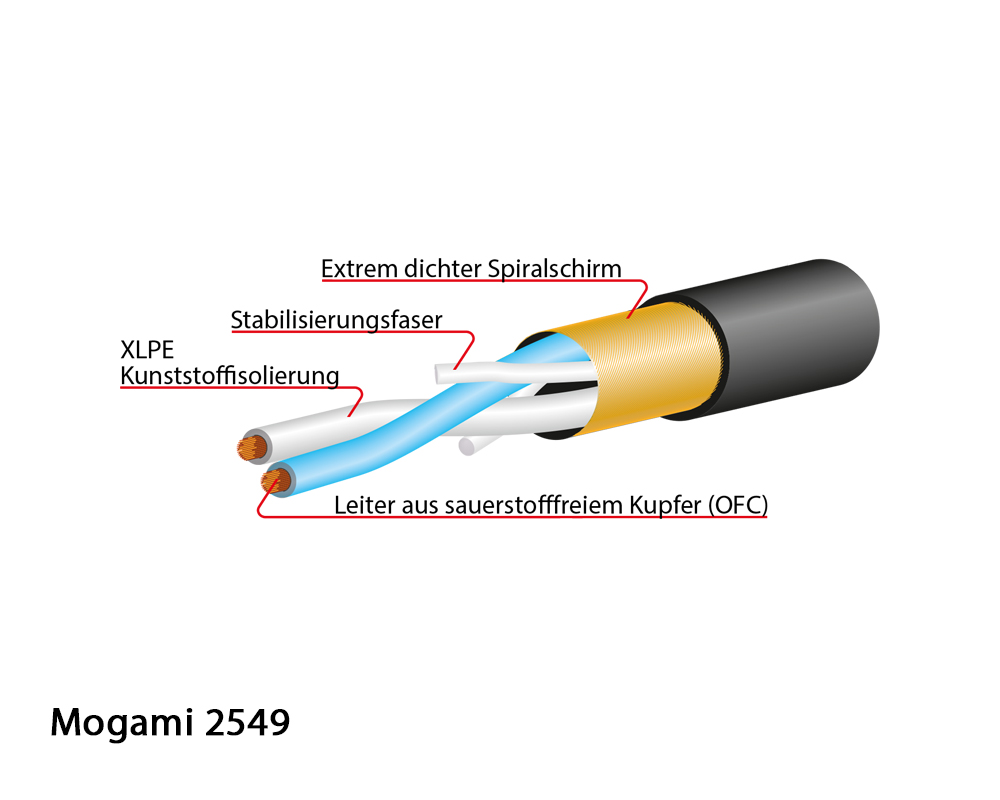

Reine sauerstofffreie Kupferleiter
Optimiert für den Dauereinsatz
Stabiler mechanischer Aufbau
Dichter Geflechtschirm
Stabile Zugentlastung
Extrem flexibel

The Mogami 2549 has been designed using our famous Neglex OFC to provide the highest quality... more

Close menu

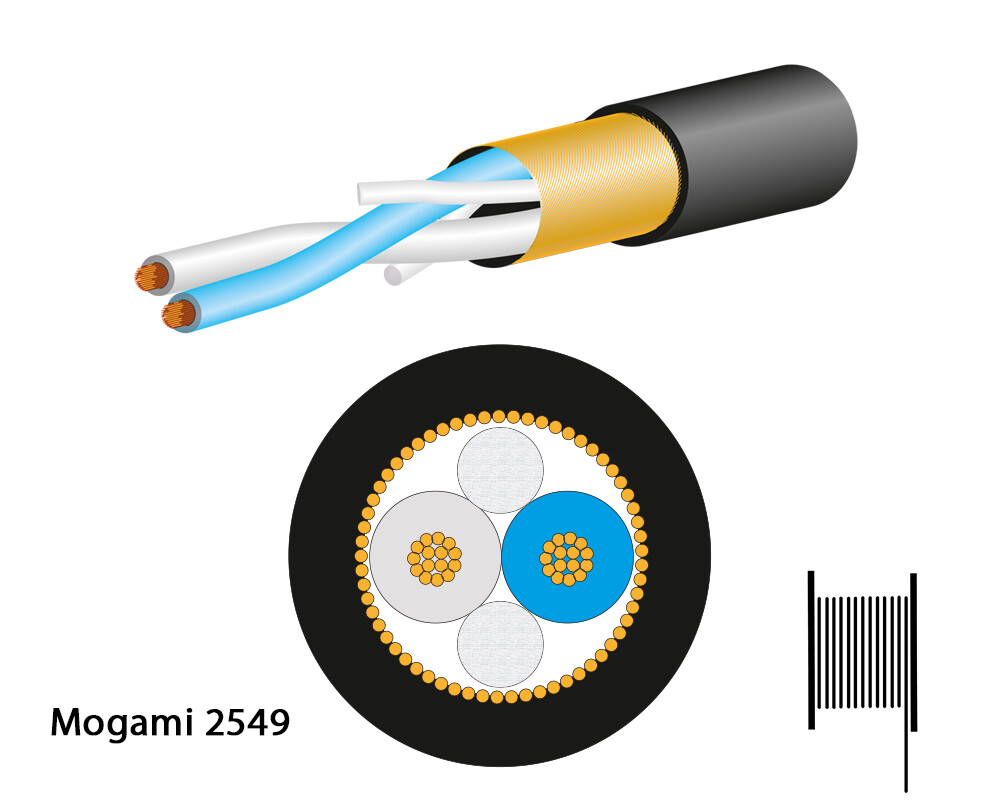

The Mogami 2549 has been designed using our famous Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

Close menu

color:	black
DC resistance:	Inner Conductor: 0,058 Ohm/m / Shield: 0,012 Ohm/m
durability:	14.500 cycles
inner conductor:	Details: 30 x 0,12 OFC / Size: 0,34 mm² (AWG22)
insulation:	Ov. Dia.: 1,9 mm / Material: XLPE / Colors: blue/clear
capacity (1 kHz, 20°C):	Inner Conductor-Shield: 76 pF/m / Conductor-Conductor: 11 pF/m
cable diameter:	6,0 mm
cable no.:	2549
jacket material:	Flexible PVC
shielding:	Spiral Shield (62 x 0,18 A)
applicable temperature:	-20°C - +60°C
Weight:	9,60 kg
