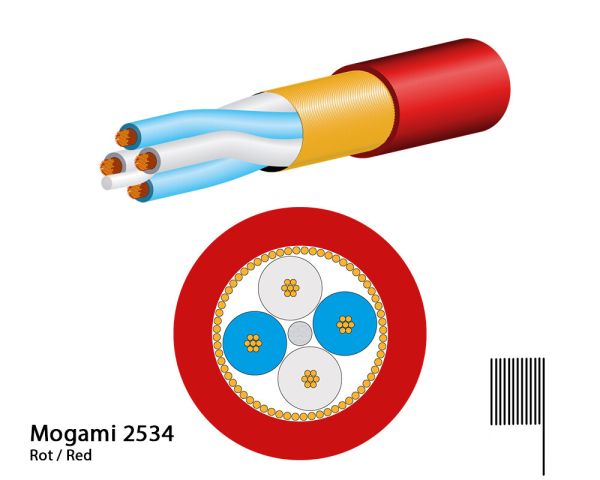

Mogami 2534-22 Microphone Cable, Neglex Quad

Colour red, Ø 6,0 mm, 100m roll
This product is currently not available.

Special order from manufacturer – delivery time approx. 8 weeks

  • 1004240
470.44EUR *

incl. VAT plus shipping costs

Colour red, Ø 6,0 mm, 100m roll more
  • Sehr hohe Störunterdrückung
  • Großer Übertragungsbereich
  • Zusätzlicher Innenstabilisator
  • Extrem dichter Spiralschirm
  • XLPE-Kunststoffisolierung
  • Quad-Core Kabeltechnik
  • Sauerstofffreies Kupfer
  • 4-Draht Leitersystem
Professional microphone cable from Mogami, roll Series: Studio Cable: Mogami 2534... more

Professional microphone cable from Mogami, roll


  • Series: Studio
  • Cable: Mogami 2534 Neglex Quad High-Definition | Red | Balanced
  • 100 Meter roll


Mogami is the premium manufacturer when it comes to professional cables! - Cables made with passion in Japan.



Studio Series

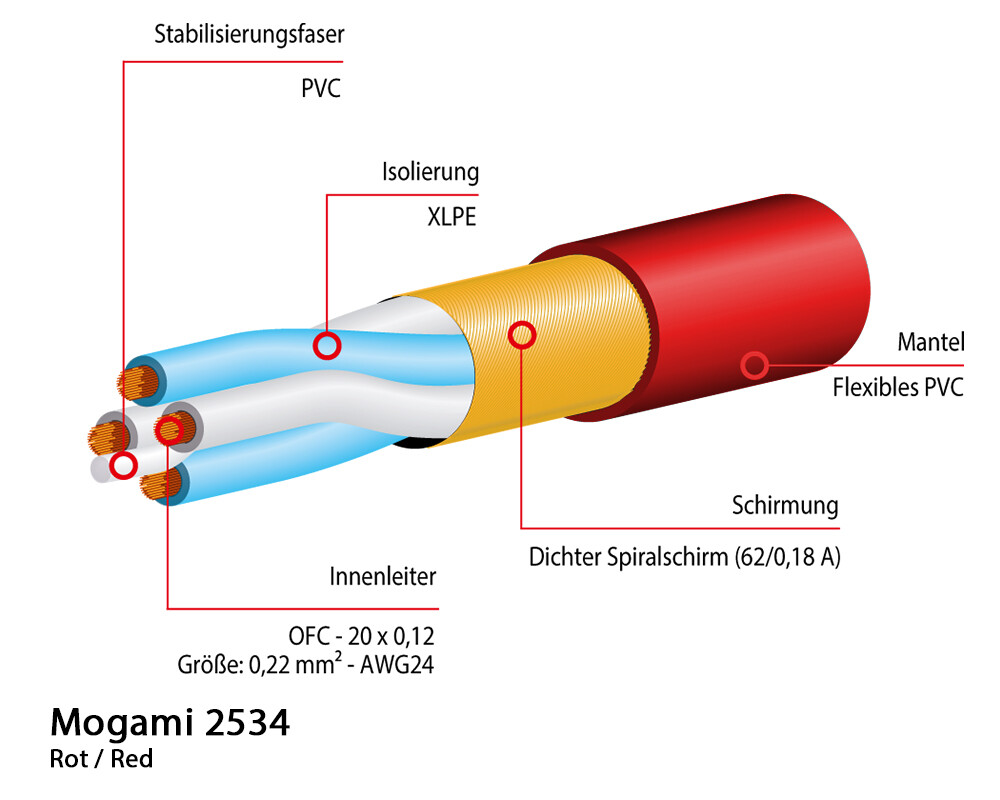

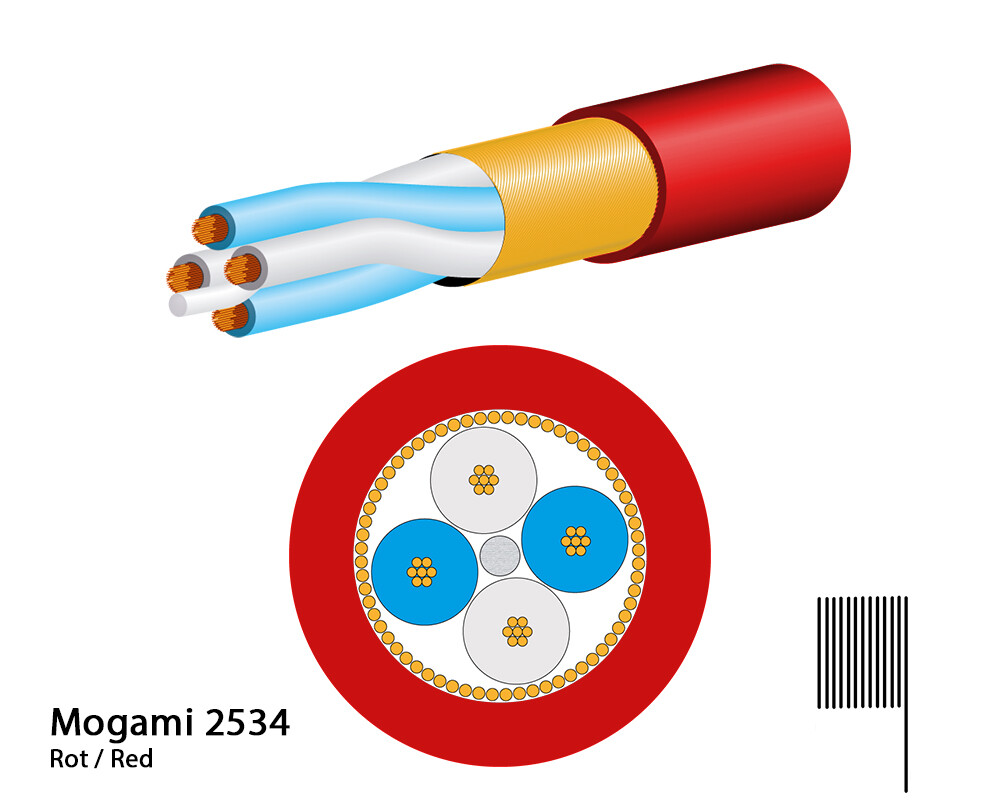

The 2534 Neglex Quad High-Definition cable is made of oxygen-free copper (OFC).
Thanks to the two positive conductors, the so-called skin effect is achieved, thus the sound sounds more brilliant than cables with only one positive conductor. As an anti-breakage protection provides an additional internal stabilizer.
Note that due to the double conductors and the inner stabilizer, the cable is less flexible.


Bestseller in LIVE

The 2534 is one of our best sellers and especially recommended for live requirements on stage and studio.
The cables with white jacket are especially popular for cabling in churches or white festivals.


Brilliant insulation due to XLPE technology!

A four-core signal transmission and the extremely dense spiral shield effectively suppress electromagnetic interference from the outside. Compared to other balanced signal guides, external interference signals are reduced by an additional 15dB.

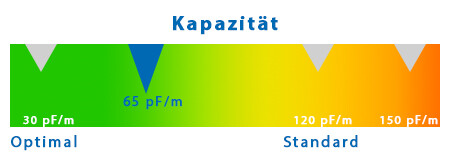

The result is recordings without interference and an extended usable dynamic range. The low capacitance of 65 pF/M the cable ensures undistorted transparency and detail of the transmitted audio signal.

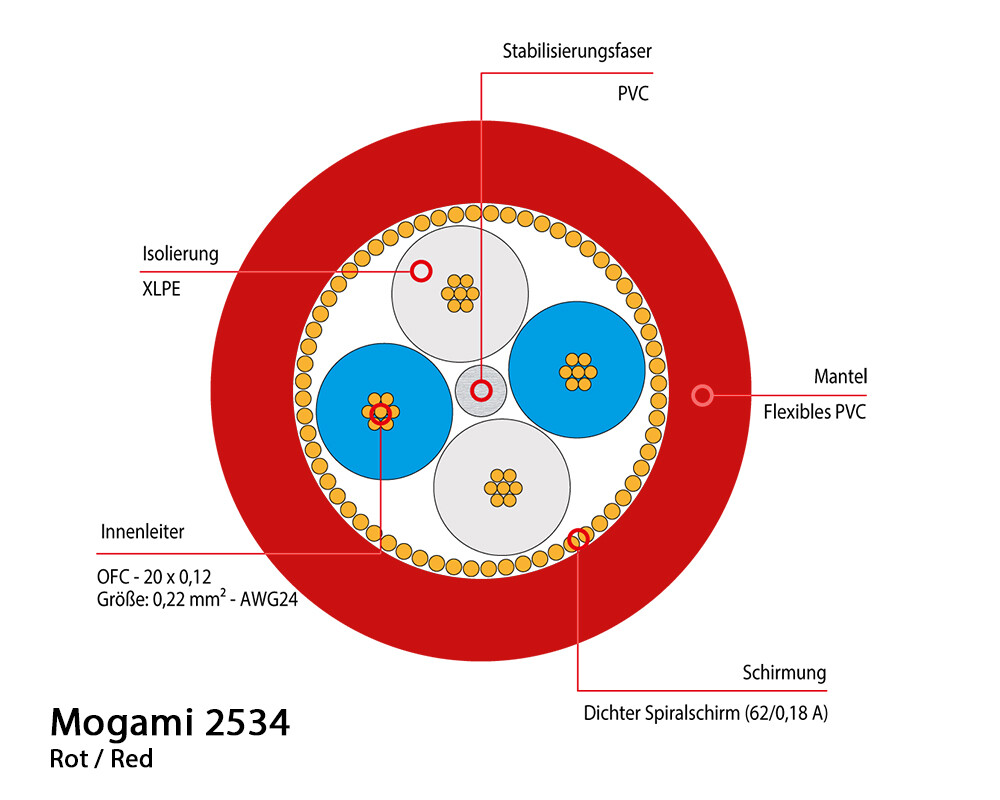

no. of conductor: 4
color: red
DC resistance: Inner Conductor: 0,083 Ohm/m / Shield Conductor: 0,012 Ohm/m
durability: 11.000 cycles
inner conductor: Details: 20 x 0,12 OFC / Size: 0,22mm² (AWG24)
insulation: Ov. Dia.: 1,6 mm / Material: XLPE / Colors: blue/clear
capacity (1 kHz, 20°C): Conductor-Shield: 65 pF/m / Conductor-Conductor: 13 pF/m
cable diameter: 6 mm
cable no.: 2534
length: 100 Meter
jacket material: Flexible PVC
shielding: Spiral Shield (62 x 0,18 A)
applicable temperature: -20°C - +60°C
Weight: 5,50 kg
