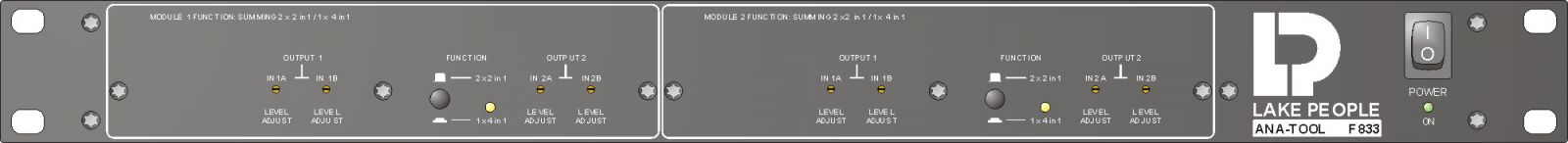

Lake People ANA-TOOL F833
2 x 4 in 1 / 4 x 2 in 1 Summing Amplifier
Delivery time approx. 2 - 3 days after receipt of order
- Item number: 1006215
- EAN: 4262404460156
2 x 4 in 1 / 4 x 2 in 1 Summing Amplifier more
- Symmetrierung der Ausgangssignale mit optimierten Schaltungen für höchste Widerstands- und Spannungsunsymmetriedämpfung
- Frontseitige Spindeltrimmer zur Pegeleinstellung im Bereich -12 … +12 dB
- Differenzierung der Eingangssignale mit höchster Gleichtaktunterdrückung
- Optimiert für Line-Level Signale, Impedanz 20 kOhm
- Frontseitig schaltbar von 2 x 2 in 1 auf 4 in 1.
- IRT konforme Ausgangsimpedanz 30 Ohm
- 2 x 2 identische Sektionen
- 2 x 2 identical sections with two balanced inputs and one balanced output each (4 x 2 in 1) -... more
- 2 x 2 identical sections with two balanced inputs and one balanced output each (4 x 2 in 1)
- Front operated switch for 2 x 2 in 1 or 4 in 1 operation In this case
- The output signal then is splitted and present on both outputs

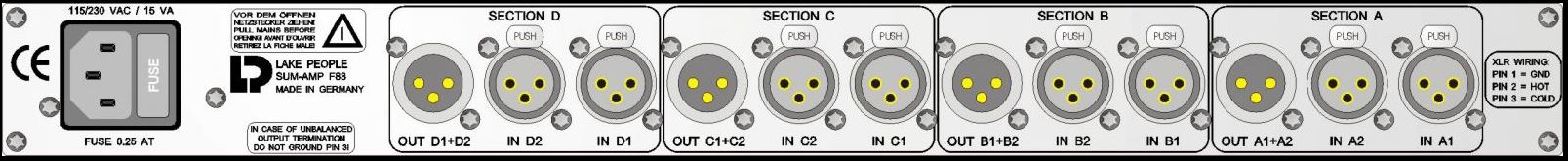

- Rear inputs electronically balanced via XLR
- XLR sockets with gold plated contacts
- Optimized for line-level signals, impedance 20 kohms
- Differencial input circuits specialized for highest common mode rejection ratio (CMRR)
- Internal filters to reduce the bandwidth to a safe and useful range from 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -12 … +12 dB
- Balancing of the output signals with optimized circuits for highest resistance- and voltage common mode rejection ratio (CMRR)
- Output impedance 30 ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey
- Front operated switch for 2 x 2 in 1 or 4 in 1 operation In this case
- The output signal then is splitted and present on both outputs
- Rear inputs electronically balanced via XLR
- XLR sockets with gold plated contacts
- Optimized for line-level signals, impedance 20 kohms
- Differencial input circuits specialized for highest common mode rejection ratio (CMRR)
- Internal filters to reduce the bandwidth to a safe and useful range from 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -12 … +12 dB
- Balancing of the output signals with optimized circuits for highest resistance- and voltage common mode rejection ratio (CMRR)
- Output impedance 30 ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey
| Max. Input Voltage: | > +25 dBu |
| dimensions: | 483x44x166 mm (BxHxT) |
| housing form: | 19" / 1 HE |
| output impedance: | < 15 Ohm |
| Input Impedance: | 20 kOhm |
| Line I/O: | 8 / 4 (XLR) |
| max. output level: | > +21 dBu |
| power supply: | Internal 230 V / 115 V AC |
| THD+N (@ -1 dBFs): | < -100 dB |
| frequency range: | 5 Hz - 40 kHz (-1 dB) |
| crosstalk: | < -100 dB @ 15 kHz |
| gain range: | -21 - +3 dB |
1x ANA-TOOL F833
1x Bedienungsanleitung
1x Netzkabel
